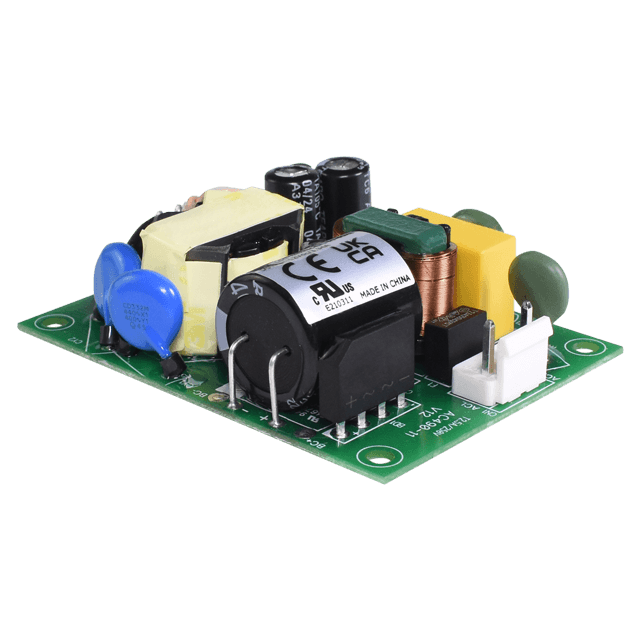

VOF-40E Series

The VOF-40E series is a family of open-frame AC-DC power supplies housed in a compact 2” x 3” chassis-mount package. These models feature a universal input voltage range, up to 48 VDC rated output voltage, and 2x peak load capability. The VOF's efficient design, compact size and rock-solid reliability make these power supplies the ideal solution for a range of industrial and ITE applications.

Features

Class B emissions
Class II
No-load power consumption < 0.15 W
5000 meter operating altitude
2x peak load capability

Specifications

Power (W): 30 ~ 40
Input Voltage Range (VAC): 90 ~ 264
Output Voltage (VDC): 5 ~ 48
Operating Temperature Range (ºC): -40 ~ +85
Cooling Type: Convection
Dimensions L x W x H (mm): 68.58 x 50.8 x 23.9
Dimensions L x W x H (in): 2.7 x 2 x 0.94
Safety Standards: 62368
Safety Approvals: CE, UKCA, UL/cUL
RoHS Compliant: Yes

Part Numbers

Technical Documents

Technical Support
