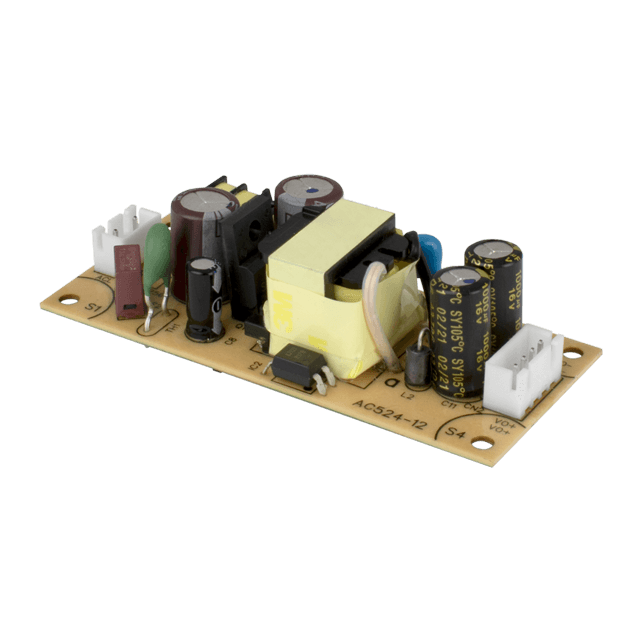

VOF-20G Series

The VOF-20G series is a family of chassis mount Open Frame AC-DC power supplies. Outputting 20W power, these modules feature a universal 90-264 Vac input voltage range and a wide operating temperature range of -40 ~ 80°C, making them ideal for ITE applications.

Features

High efficiency up to 87%
Low no load power consumption (<0.1 W)
Certified to IEC/EN/UL 62368-1
Designed to meet IEC/EN 60335-1
Class II
Over voltage (OVC II & OVC III) and short-circuit protection
Operating altitude 5,000 m
CISPR/FCC Class B

Specifications

Power (W): 20
Input Voltage Range (VAC): 90 ~ 264
Output Voltage (VDC): 5 ~ 48
Operating Temperature Range (ºC): -40 ~ +80
Cooling Type: Convection
Dimensions L x W x H (mm): 76.2 x 33 x 21.1
Dimensions L x W x H (in): 3 x 1.3 x 0.831
Safety Standards: 62368
Safety Approvals: CE, UL/cUL
RoHS Compliant: Yes

Part Numbers

Technical Documents

Technical Support

Loading more products . . .

Compatible Products

PSK-20B Series

The PSK-20B series is a family of encapsulated AC-DC power supplies housed in a compact board mount package. Outputting 20 W of continuous power, these single output, encapsulated modules feature 4 kVac isolation and no-load power consumption less than 100 mW, making them ideal for space-constrained, low power ITE, industrial, and consumer electronic applications.

View Product

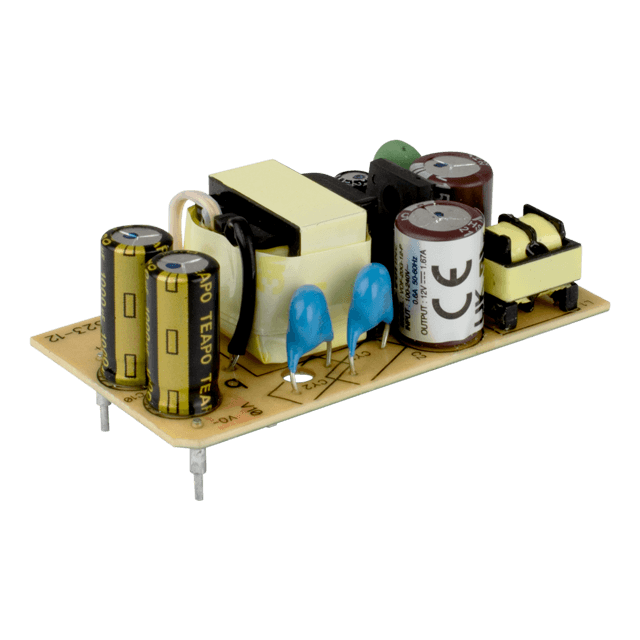

VOF-20G-P Series
