VOF-20G-P Series

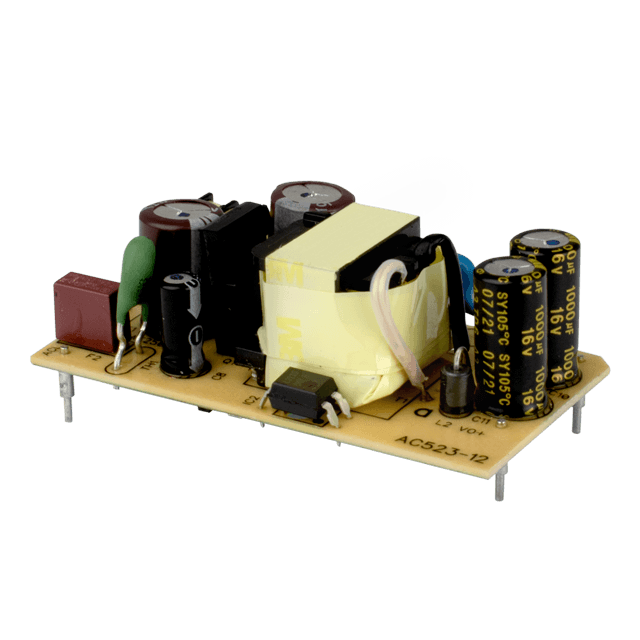

The VOF-20G-P series is a family of through hole Open Frame AC-DC power supplies. Outputting 20 W power, these modules feature a universal 90 ~ 264 VAC input voltage range and a wide operating temperature range of -40°C ~ 80°C, making them ideal for ITE applications.
Features
  • High efficiency up to 87%
  • Low no load power consumption (<0.1 W)
  • Certified to IEC/EN/UL 62368-1
  • Designed to meet IEC/EN 60335-1
  • Class II
  • Operating altitude 5,000 m
  • CISPR/FCC Class B
  • Over voltage protection (OVP)
  • Short circuit protection (SCP)
Specifications
  • Power (W): 20
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 5 ~ 48
  • Operating Temperature Range (ºC): -40 ~ +80
  • Cooling Type: Convection
  • Dimensions L x W x H (mm): 60.5 x 33 x 23
  • Dimensions L x W x H (in): 2.38 x 1.3 x 0.906
  • Safety Standards: 62368
  • Safety Approvals: CE, UL/cUL
  • RoHS Compliant: Yes
