3D View

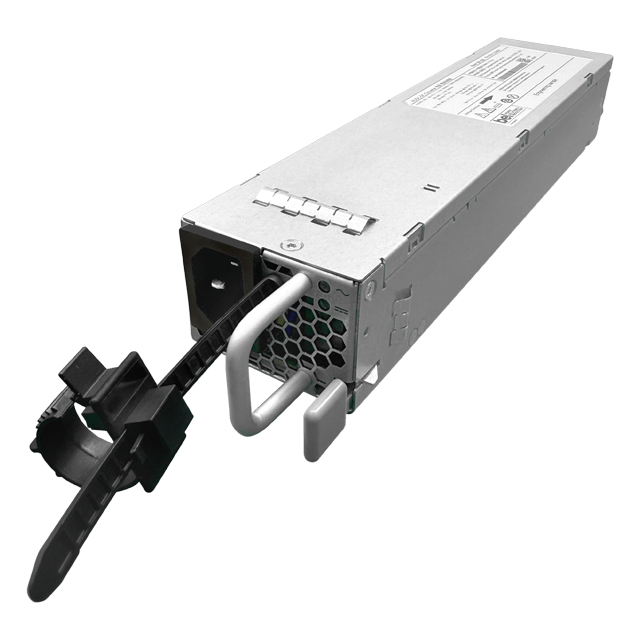

TFS1500-12-054RAC AC-DC Converters
1500 W AC-DC Power Supply, 12 VDC, 90 ~ 264 VAC, 125 A, 1 output, Front-End, Rack Mount, Reverse Airflow, IEC 60320-C22 type connector
Stock Check
Country - USA
Features & Specifications
| Power (W) | 1500 |
| Input Voltage Range (VAC) | 90-264 |
| Input Voltage Range (HVDC) | 180- 350 |
| Number of Outputs | 1 |
| Output Voltage (VDC) | 12 |
| Standby Output Voltage (VDC) | 3.3 ~ 12 |
| Output Current (A) | 125 |
| Operating Temperature Range (ºC) | -5 ~ +65 |
| Cooling Type | Fan |
| Dimensions L x W x H (mm) | 228.6 x 54.5 x 40 |
| Dimensions L x W x H (in) | 9 x 2.14 x 1.57 |
| Mounting Type | Rack Mount |
| Package | Enclosed |
| Connector | IEC 60320-C22 type |
| Options | Reverse Airflow |
| Market | Networking & Data Centers |
| Safety Standards | 62368 |
| Safety Approvals | BSMI, CB, CQC, CSA, Nemko |
| RoHS Compliant | Yes |
| Brand | Bel |
