TEC3000 (AC-DC/HVDC Intel Standard CRPS) Series
TEC3000 (AC-DC/HVDC Intel Standard CRPS) Series

TEC3000 (AC-DC/HVDC Intel Standard CRPS) Series

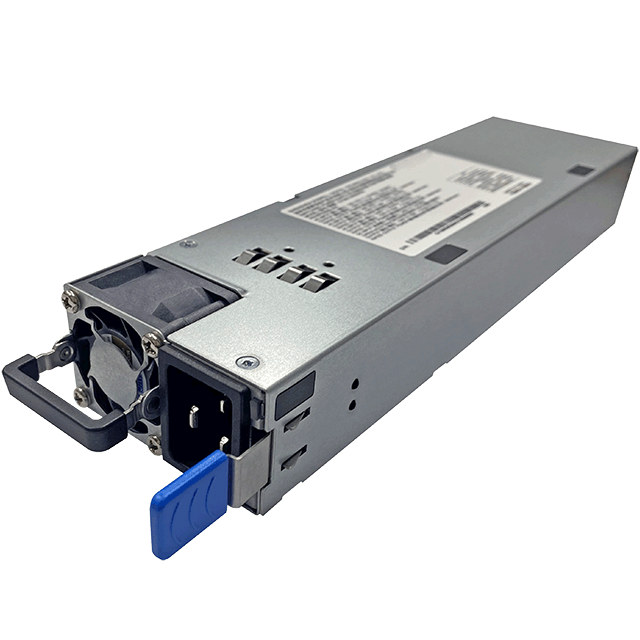

TEC3000-48-074xA is a 3000W Common Redundant Power Supply (CRPS) power supply that converts standard AC mains power or High Voltage DC bus voltages (HVDC) into a main output of 54 VDC for powering systems using distributed power architectures. The power supply is hot-swappable and supports N+1 redundant architecture. The high-power density helps to improve the overall system efficiency and enhance system reliability. The full digital control facilitates remote set-up, monitoring and control. TEC300-48-074xA offers multiple protections including overvoltage, overtemperature, overcurrent, overpower & short circuit protection. This power supply meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
Features
  • 80 Plus Titanium Efficiency
  • Intel Standard CRPS Form Factor
  • High Power Density
  • Black Box Recorder, Bootloader
  • Supports N+1 Redundancy, Cold Redundancy, Internal Oring
  • Clockwise and Counter-Clockwise Fan Rotation
  • Supports Power Management Bus Communication Protocol
Specifications
  • Power (W): 3000
  • Input Voltage Range (VAC): 90 ~ 264
  • Input Voltage Range (HVDC): 180 ~ 300
  • Output Voltage (VDC): 54
  • Standby Output Voltage (VDC): 12
  • Operating Temperature Range (ºC): 0 ~ +50
  • Cooling Type: Fan
  • Safety Approvals: CB, CE, UL
  • RoHS Compliant: Yes
