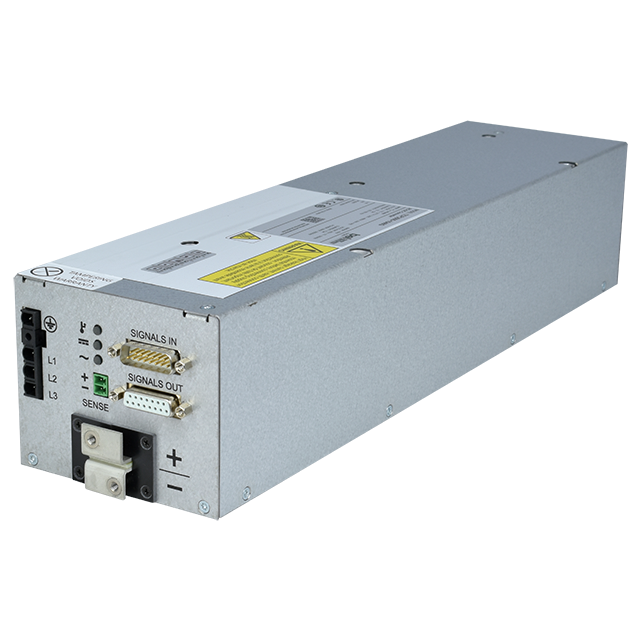

TCP3500-H048G AC-DC Converters
High Power 3-phase AC-DC Power Supply | Power 3500W | Output 48VDC, 73A | Input 180-528VAC | Pulse load operation capability
Stock Check
Country - USA
Features & Specifications
| Power (W) | 3500 |
| Input Voltage Range (VAC) | 180 ~ 528 |
| Number of Outputs | 1 |
| Output Voltage (VDC) | 48 |
| Adjustable Output Voltage (VDC) | 10 ~ 50 |
| Output Current (A) | 73 or pulse |
| Operating Temperature Range (ºC) | 0 ~ +70 |
| Cooling Type | Liquid |
| Dimensions L x W x H (mm) | 400 x 103 x 85 |
| Dimensions L x W x H (in) | 15.74 x 4.05 x 3.34 |
| Mounting Type | Rack Mount |
| Package | Enclosed |
| Market | Industrial |
| Safety Standards | 62368 |
| Safety Approvals | CB, CE, CSA |
| RoHS Compliant | Yes |
| Brand | Bel |
