ABS400 Series

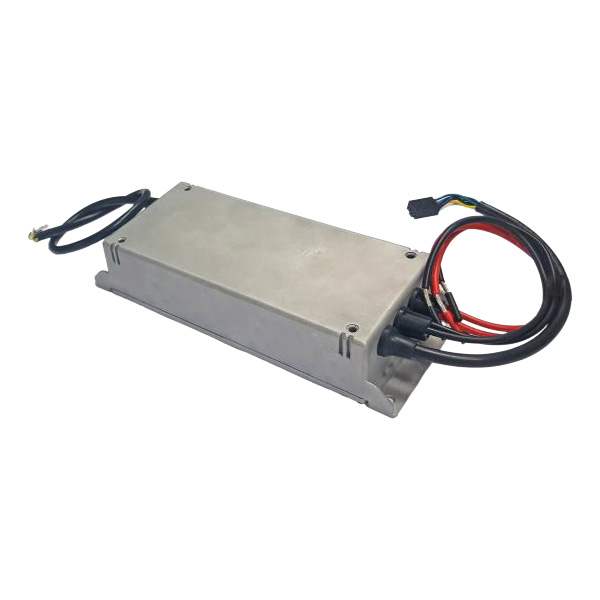

The ABS400 Series of AC-DC power supplies provides up to 400 W of regulated output power through wide input voltage range 90 – 264 VAC in single outputs of 12, 24, 36 or 48 VDC. The ABS400 Series comes in a 83.0 x 212.0 x 42.0 mm form factor, offering 12 and 5 VSB standby outputs and a full set of protection features. Available control signals include Power Good (Power_OK), remote On/off (PS_ON) and remote sense (+RS). The sealed and full potted package allows an IP67 ingress protection index and can be installed in contact with thermo-conductive part of the system to transfer heat by conduction. The ABS400 Series complies with the latest international safety standards for IT equipment and displays the CE-Mark for the European Low Voltage Directive (LVD).

Part Numbers

Specifications & Features

Technical Documents

Technical Support

Loading more products . . .

Compatible Products with ABS400 Series

Clear Filters

Accessories

HSKIT-400-XBS

Heatsink accessory (optional) for ABS/MBS400 power supply

View Product

Option

ABS601 Series

The ABS601 Series of AC-DC power supplies provides up to 600 W of regulated output power through a wide input voltage range 85 - 305 VAC in a single output of 24 VDC or 48 VDC. The ABS601 Series comes in a 4.92 x 9.86 x 2.36 inch form factor with a full set of protection features. The ABS601 Series is available in an aluminium extruded chassis having fins for an optimal heat dispersion via natural convection. The input / output connections are fixed to the chassis through water tight glands, which combined with the sealed enclosure, give the power supply an IP66/67/68 ingress protection grade. The ABS601 Series complies with the latest international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).

View Product
