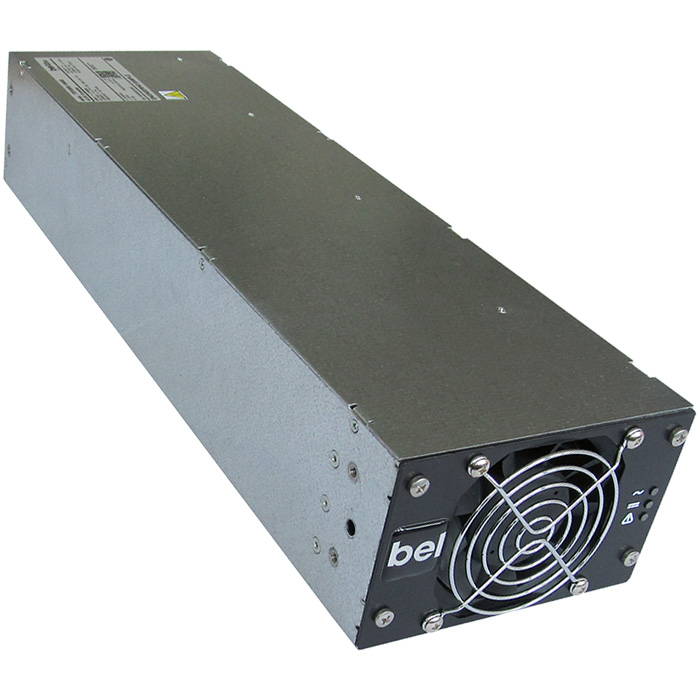

TXP3500/4000 Series
Specifications
- Power (W): 3500 ~ 4000
- Input Voltage Range (VAC): 180 ~ 528
- Output Voltage (VDC): 48 ~ 110
- Operating Temperature Range (ºC): -20 ~ +55
- Cooling Type: Fan
- Dimensions L x W x H (mm): 410 x 85 x 103
- Dimensions L x W x H (in): 16.14 x 3.34 x 4.05
- Safety Standards: 62368
- Safety Approvals: CB, CE, CSA
- RoHS Compliant: Yes
Features
- Parallel Operation of up to 8 Units (28 kW)
- Serial Operation of up to 4 Units
- Internal Fan Cooling System
- RS485 / CAN bus Interfaces
- Adjustable Output Voltage Range
- Auxiliary Output 12 V / 0.8 A
- Active or Passive Current Sharing
