TET4800 (AC-DC/HVDC) Series

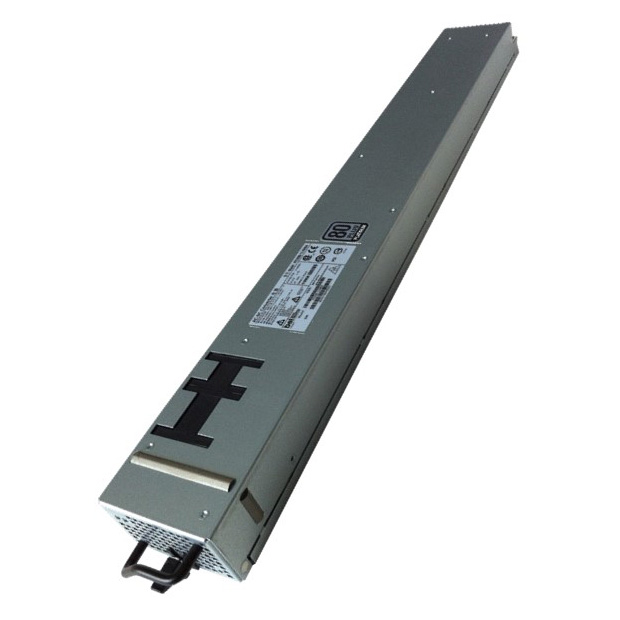

Bel Power Solutions TET4800-48-069RA is a 4800 Watt AC-DC power-factor-corrected (PFC) and DC-DC power supply that converts standard AC mains power or high voltage DC bus voltages into a main output of 48 VDC (42-58 VDC) for supplying 48 VDC power distribution in high performance and reliability data center equipment, servers, routers, and network switches. The TET4800-48-069RA meets international safety standards and displays the CE mark for the European Low Voltage Directive (LVD).
Features
  • Full digital controls for improved performance
  • CAN communication interface for monitoring, control, and firmware update via bootloader
  • 2 Status LEDs: AC OK and DC OK with fault signaling
  • Over temperature protection (OTP)
  • Over voltage protection (OVP)
  • Over current protection (OCP)
Specifications
  • Power (W): 4800
  • Input Voltage Range (VAC): 90 ~ 300
  • Input Voltage Range (HVDC): 192 ~ 400
  • Output Voltage (VDC): 48
  • Standby Output Voltage (VDC): 12
  • Operating Temperature Range (ºC): 0 ~ +45
  • Cooling Type: Fan
  • Safety Standards: 62368
  • Safety Approvals: CB, CE, CSA, Nemko
  • RoHS Compliant: Yes
