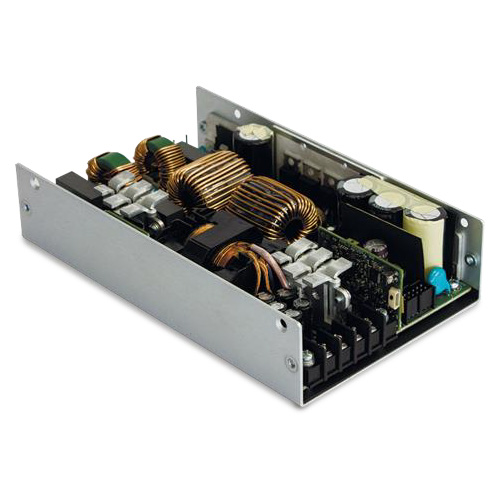

The ABC601 Series of industrial and medical AC-DC power supplies provides up to 600 W of regulated output power through wide input voltage range 85 - 305 VAC in single outputs of 24, 28, 36 or 48 VDC. The ABC601 Series comes in two packages, U-frame chassis or enclosed with a front mounted fan, offering 12 and 5 VSB standby outputs and a full set of protection features. The ABC601 Series complies with the latest international safety standards for IT and medical equipment and displays the CE-Mark for the European Low Voltage Directive (LVD).
Features
  • Remote On / Off signal
  • Low earth / touch leakage current
  • Fan speed control circuit
  • IT approval to IEC/EN 62368-1
  • LED lighting approval to UL 8750
  • Medical safety approval to IEC 60601-1, 2x MoPP protection grade BF appliances compatible
Specifications
  • Power (W): 600
  • Input Voltage Range (VAC): 85 ~ 305
  • Output Voltage (VDC): 24 ~ 48
  • Operating Temperature Range (ºC): -20 ~ +50
  • Cooling Type: Convection, Fan
  • Safety Standards: 62368
  • Safety Approvals: CB, CE, UL
  • RoHS Compliant: Yes
