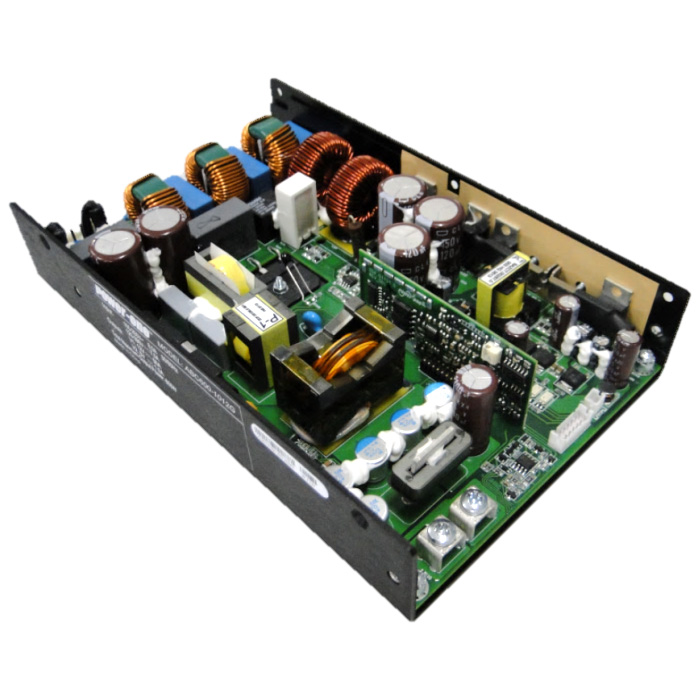

ABC600 Series

ABC400 Series is a compact and efficient series of AC-DC open frame power supplies suited for telecom, datacom and many other applications. The family meets the international information technology safety standards with the CE-Mark for the European Low Voltage Directive (LVD). Their high efficiency allows a very minimal power loss in end equipment, resulting in higher reliability, ease of thermal management and regulatory approvals for an environmentally friendly end product.

The ABC Series of open-frame power supplies, with its wide universal 90-264 Vac input range and high power density, is available from 40W to 600W of output power and a variety of single and multiple output voltages.

The ABC601 Series of industrial and medical AC-DC power supplies provides up to 600 W of regulated output power through wide input voltage range 85 - 305 VAC in single outputs of 24, 28, 36 or 48 VDC. The ABC601 Series comes in two packages, U-frame chassis or enclosed with a front mounted fan, offering 12 and 5 VSB standby outputs and a full set of protection features. The ABC601 Series complies with the latest international safety standards for IT and medical equipment and displays the CE-Mark for the European Low Voltage Directive (LVD).

The ABC1200 / ABE1200 Series of AC-DC power supplies provides up to 1200 W of regulated output power through wide input voltage range 85 - 305 VAC in a single output of 24 VDC or 48 VDC. The ABC1200 / ABE1200 Series is available in three compact 1U height compatible packages offering 12 and 5 VSB standby outputs and a full set of protection features. The ABC1200 / ABE1200 Series complies with the latest international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
