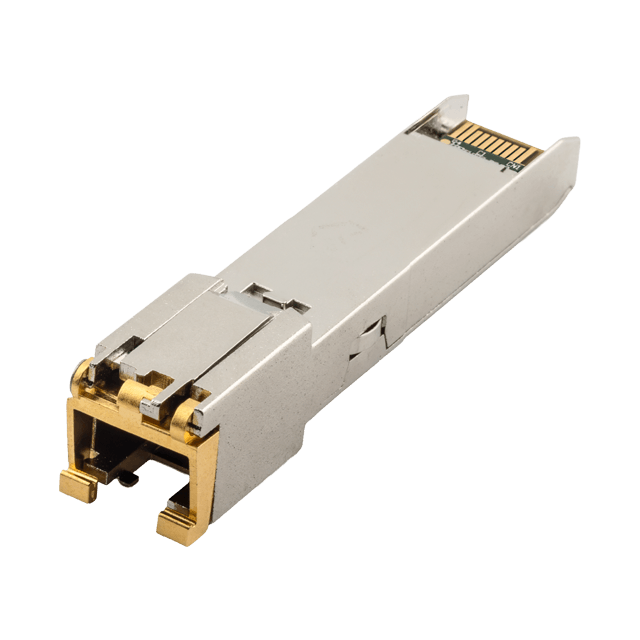

DM7041-R-L SFP Transceivers
Gigabit Ethernet SFP with operational Loss of Signal indication for link monitoring
Stock Check
Country - USA
Features & Specifications
| Product Type | SFP Transceiver |
| Transceiver Type | Copper |
| Speed | 1000BASE-T, 100BASE-T, 10BASE-T |
| Interface | SGMII |
| Max. Distance (m) | 100 |
| Power Consumption (W) | 1.2 |
| Connector Type | RJ45 |
| Cable Type | CAT 5/5e |
| Latch Type | Bail Latch |
| Housing Type | Die Cast |
| Form Factor | SFP MSA |
| Operating Temperature Range (ºC) | -5 ~ +85 |
| Standards Compliance | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| RoHS Compliant | Yes |
| Features | EEprom locked, LOS Operational |
