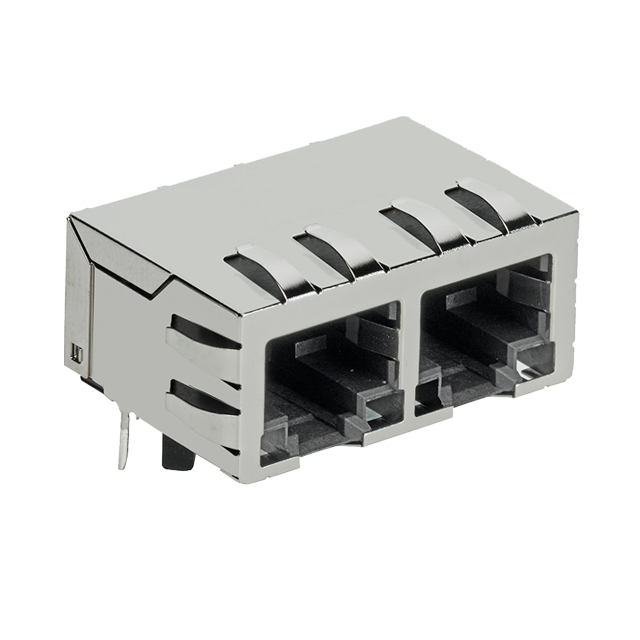

SI-60159-F Ethernet MagJacks® (ICMs)
SI-60159-F Ethernet MagJacks® (ICMs)
3D model icon 3D View
left chevron icon right chevron icon
Active

SI-60159-F MagJacks® (ICMs)

1X2 MagJack® ICM, 10/100BASE-T, Tab Down, 0ºC ~ 70ºC, Through Hole Mount, G/Y LEDs

Stock Check

Request Quote

Features & Specifications

Number of Ports 1X2
Speed 10/100BASE-T
Height Profile Standard
LED Yes
LED Type G/Y
Port Configuration Tab Down
PoE Rating Non PoE
Mounting Type Through Hole Mount
Operating Temperature (ºC) 0 ~ +70
EMI Tabs Yes
RoHS Compliant Yes
Brand Bel

Compatible Products with SI-60159-F

SI-60051-F
Option

SI-60051-F

1X2 MagJack® ICM, 10/100BASE-T, Tab Down, 0ºC ~ 70ºC, Through Hole Mount, G/G LEDs

View Product
SI-60053-F
Option

SI-60053-F

1X2 MagJack® ICM, 10/100BASE-T, Tab Down, 0ºC ~ 70ºC, Through Hole Mount, No LEDs

View Product
SI-60082-F
Option

SI-60082-F

1X2 MagJack® ICM, 10/100BASE-T, Tab Down, 0ºC ~ 70ºC, Through Hole Mount, G/G LEDs

View Product
SI-60109-F
Option

SI-60109-F

1X2 MagJack® ICM, 10/100BASE-T, Tab Down, 0ºC ~ 70ºC, Through Hole Mount, G/Y LEDs

View Product
SI-60135-F
Option

SI-60135-F

1X2 MagJack® ICM, 10/100BASE-T, Tab Down, 0ºC ~ 70ºC, Through Hole Mount, No LEDs

View Product
SI-60192-F
Option

SI-60192-F

1X2 MagJack® ICM, 10/100BASE-T, Tab Down, -40ºC ~ 85ºC, Through Hole Mount, No LEDs

View Product
SI-60238-F
Option

SI-60238-F

1X2 MagJack® ICM, 10/100BASE-T, Tab Down, -40ºC ~ 85ºC, Through Hole Mount, Y/G LEDs

View Product
