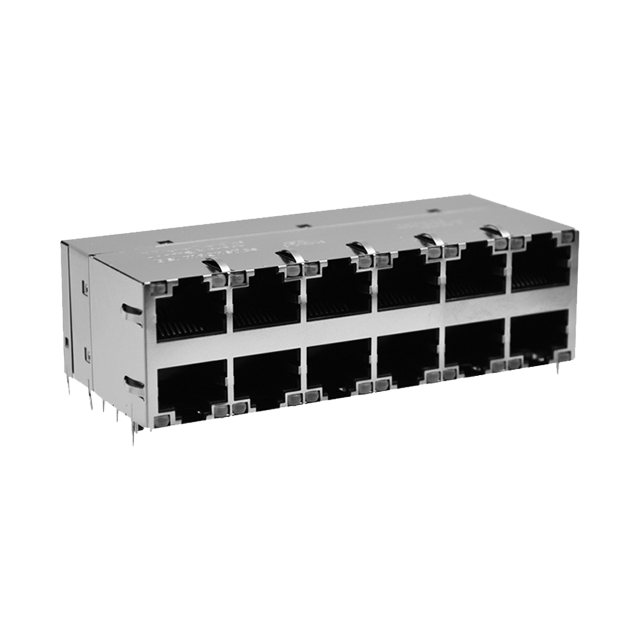

2250866-1 Ethernet MagJacks® (ICMs)
2250866-1 Ethernet MagJacks® (ICMs)
3D model icon 3D View
left chevron icon right chevron icon
Active

2250866-1 MagJacks® (ICMs)

2X6 | 5G | 4PPoE 60W | Pressfit -40 to 85ºC | NO LED

Stock Check

Request Quote

Features & Specifications

Number of Ports 2X6
Speed 5GBASE-T
Height Profile Standard
LED No
Port Configuration Stacked
PoE Rating 4PPoE 60W
Mounting Type Press Fit
Operating Temperature (ºC) -40 ~ +85
EMI Tabs Yes
RoHS Compliant Yes
Brand TRP
