2250419-1 Ethernet MagJacks® (ICMs)
2250419-1 Ethernet MagJacks® (ICMs)
3D model icon 3D View
left chevron icon right chevron icon
Active

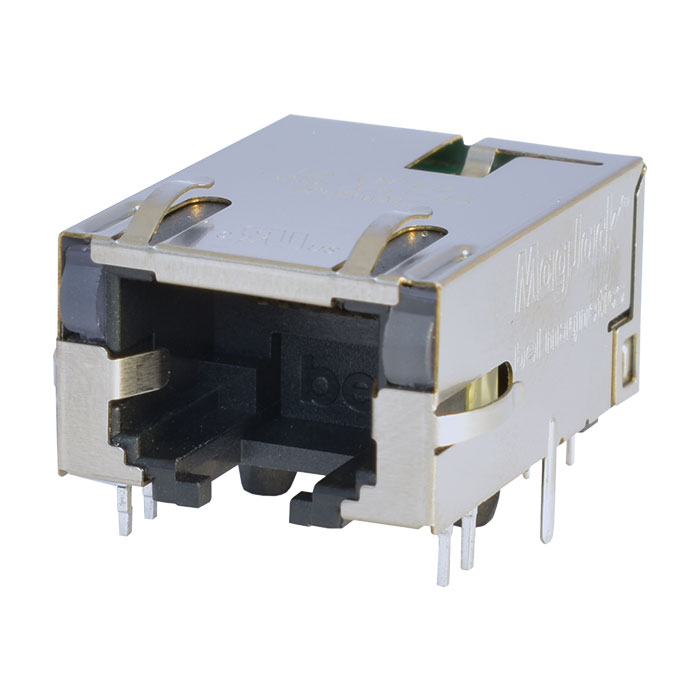

2250419-1 MagJacks® (ICMs)

1X1 MagJack® ICM, 8HT01, 5GBASE-T, Tab Down, 0ºC ~ 70ºC, Through Hole Mount, GY/G Light Pipe LEDs, Low Profile

Stock Check

Request Quote

Features & Specifications

Number of Ports 1X1
Speed 5GBASE-T
Height Profile Low
LED Yes
LED Type GY/G
Port Configuration Tab Down
PoE Rating Non PoE
Mounting Type Through Hole Mount
Operating Temperature (ºC) 0 ~ +70
EMI Tabs Yes
RoHS Compliant Yes
Brand TRP

Compatible Products with 2250419-1

2250419-2
Option

2250419-2

1X1 MagJack® ICM, 5GBASE-T, Tab Down, 0ºC ~ 70ºC, Through Hole Mount, GY/G LEDs, Low Profile

View Product
G26-1NNL-114
Option

G26-1NNL-114

1X1 MagJack® ICM, 5GBASE-T, 4PPoE 60 W, Tab Down, -40ºC ~ 85ºC, Through Hole Mount, No LEDs, Low Profile

View Product
G26-1NNL-123
Option

G26-1NNL-123

1X1 MagJack® ICM, 5GBASE-T, 4PPoE 60 W, Tab Down, -40ºC ~ 85ºC, Through Hole Mount, No LEDs, Low Profile

View Product
G26-1NNL-123B
Option

G26-1NNL-123B

1X1 MagJack® ICM, 5GBASE-T, 4PPoE 60 W, Tab Down, -40ºC ~ 85ºC, Through Hole Mount, No LEDs, Low Profile

View Product
L836-121T-KE
Option

L836-121T-KE

1X1 MagJack® ICM, 5GBASE-T, Tab Down, -40ºC ~ 85ºC, Through Hole Mount, GY/G LEDs

View Product
L885-181T-KEL
Option

L885-181T-KEL

1X1 MagJack® ICM, 5GBASE-T, Tab Down, -40ºC ~ 85ºC, Through Hole Mount, No LEDs with Light Pipe, Low Profile

View Product
