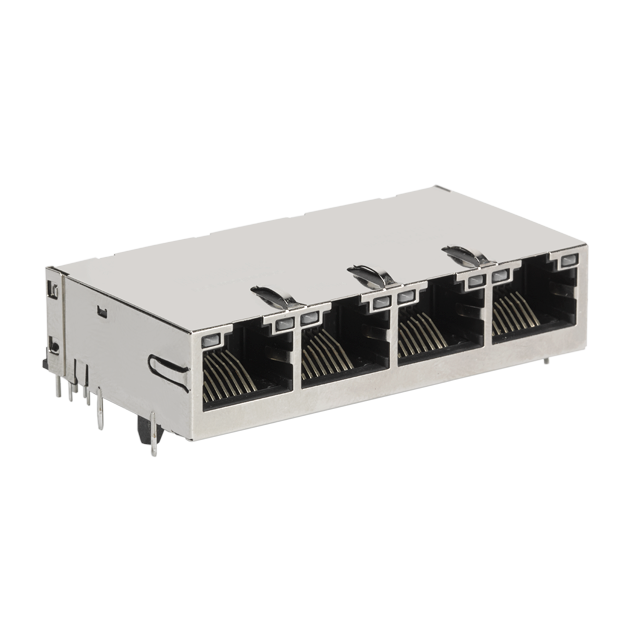

3D View
0826-1C4T-KDM-F MagJacks® (ICMs)
1X4 Gigabit MagJack® ICM, 2.5GBASE-T, Tab Up, -40ºC ~ 85ºC, Through Hole Mount, GY/GY LEDs
Stock Check
Country - USA
Features & Specifications
| Number of Ports | 1X4 |
| Speed | 2.5GBASE-T |
| Height Profile | Standard |
| LED | Yes |
| LED Type | GY/GY |
| Port Configuration | Tab Up |
| PoE Rating | Non PoE |
| Mounting Type | Through Hole Mount |
| Operating Temperature (ºC) | -40 ~ +85 |
| EMI Tabs | Yes |
| RoHS Compliant | Yes |
| Brand | Bel |
