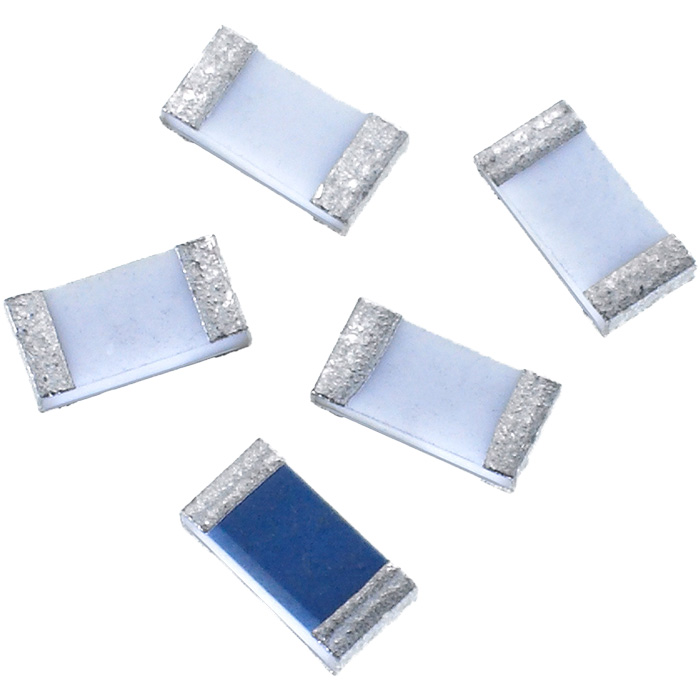

C1Q Series

Thick Film chip technology on ceramic substrates, in 0603 and 1206 case sizes. Low cost solutions with UL, CSA and CE approvals. Provide board level primary and secondary circuit protection in a wide variety of applications, including battery chargers, power supplies, modems, routers, consumer electronics, PoE, PoE+, Backplane Short Circuit Protection, etc.

Features

Ceramic substrate, printed element construction
RoHS6 Compliant
Pb-Free
Halogen-Free
T&R, Auto-Insertable

Specifications

Fuse Type: Chip Fuse
Current (A): 0.25 ~ 7
Voltage (VDC): 63
Voltage (VAC): 63 ~ 125
Mounting Type: Surface Mount
Response Time: Fast Blow
Case Size: 1206
AEC-Q200 Compliant: Yes
RoHS Compliant: Yes

Part Numbers

Technical Documents

Technical Support
