C1H Series

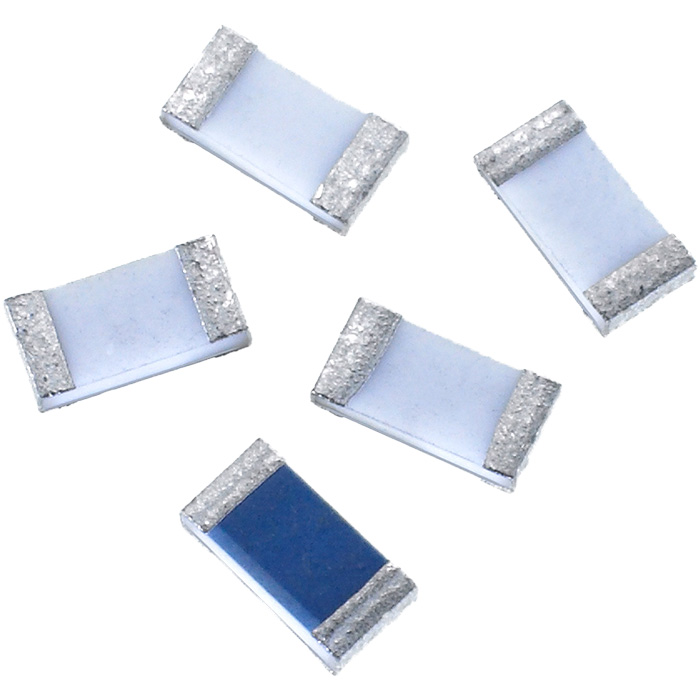

C1H Series is AEC-Q Compliant 1206 size surface mount high current rated fast acting chip fuse. 125V AC/32V DC voltage rating, 10A to 30A current rating, -55ºC to +125ºC operating temperature.
Features
  • Ceramic substrate, printed element construction
  • RoHS6 Compliant
  • Pb-Free
  • Halogen-Free
  • T&R, Auto-Insertable
Specifications
  • Fuse Type: Chip Fuse
  • Current (A): 10 ~ 30
  • Voltage (VDC): 32
  • Voltage (VAC): 125
  • Mounting Type: Surface Mount
  • Response Time: Fast Blow
  • Case Size: 1206
  • AEC-Q200 Compliant: Yes
  • RoHS Compliant: Yes
