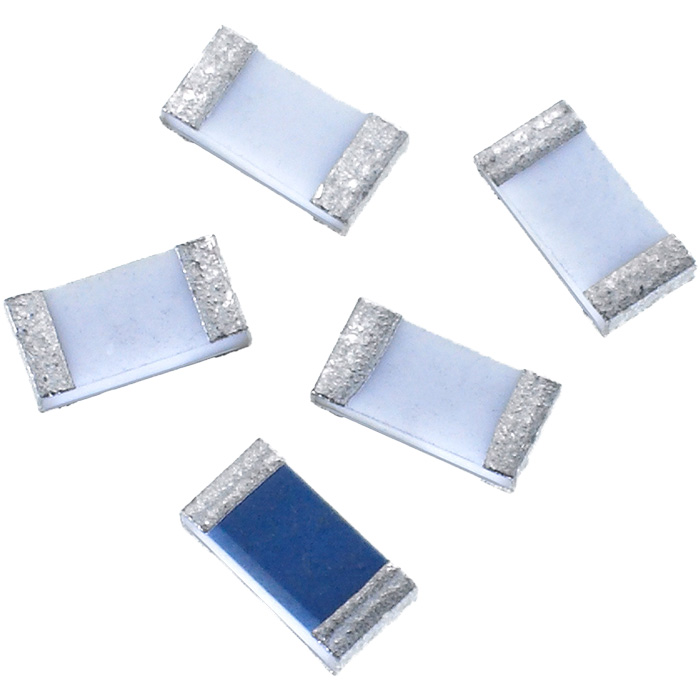

C1F Series
Features
- Ceramic substrate, printed element construction
- RoHS6 Compliant
- Pb-Free
- Halogen-Free
- T&R, Auto-Insertable
Specifications
- Fuse Type: Chip Fuse
- Current (A): 0.25 ~ 8
- Voltage (VDC): 63
- Voltage (VAC): 125
- Interrupting Rating DC (A): 50
- Interrupting Rating AC (A): 35 ~ 100
- Mounting Type: Surface Mount
- Response Time: Fast Blow
- Packaging: Tape and Reel (5000 pcs.)
- Plating: Nickel
- Case Size: 1206
- Length (mm): 3.2
- Width (mm): 1.58
- AEC-Q200 Compliant: Yes
- Brand: Bel
- RoHS Compliant: Yes
