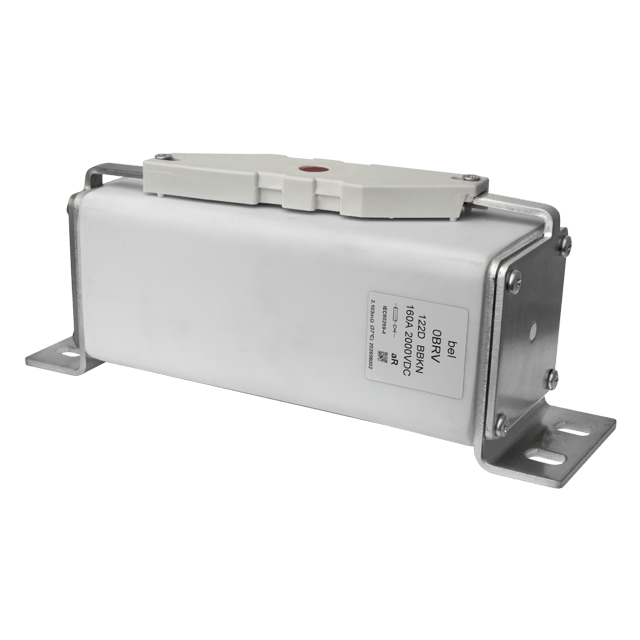

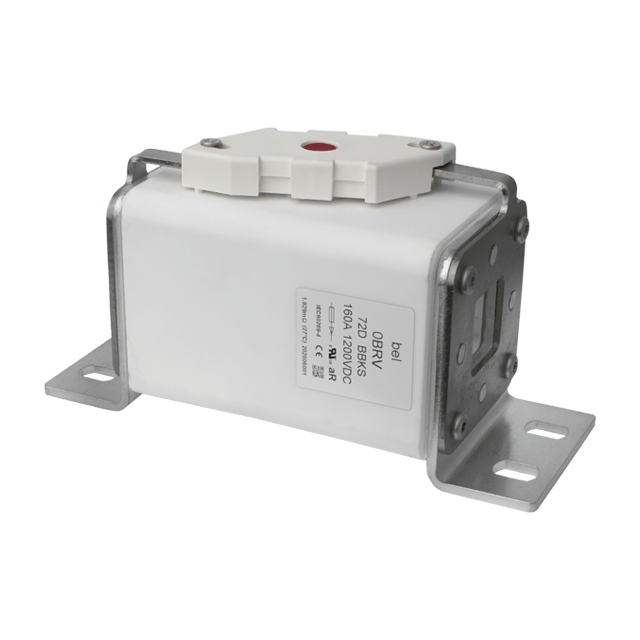

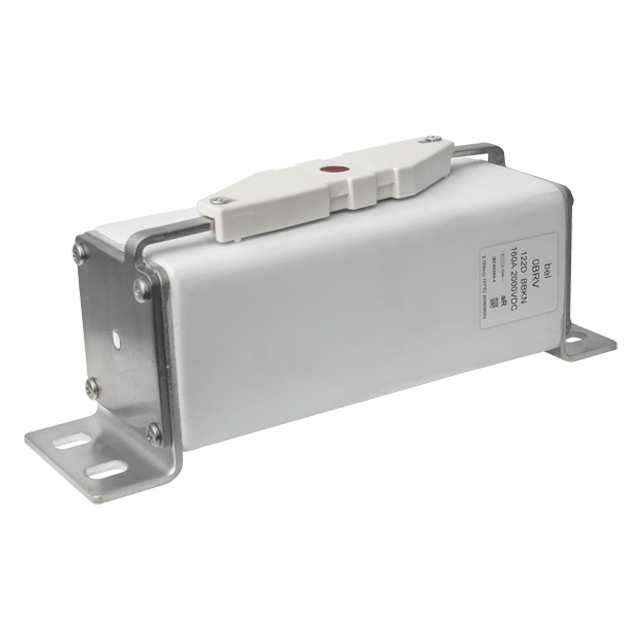

0BRV Series

The 0BRV Series is a high speed ceramic body fuse designed for short circuit protection in railway power and auxiliary circuits. Rated at 1200 VDC and 2000 VDC with current ratings from 160 A to 420 A, it offers an interrupting rating of 100 kA and meets operating class aR for the protection of inverters, motor drives, UPS systems and ESS battery racks. Silver-plated brass terminals and a bent-blade stud-mount design support reliable installation, with a storage temperature range of -40ºC ~ +70ºC.
