0ACJ Series
0ACJ Series

0ACJ Series

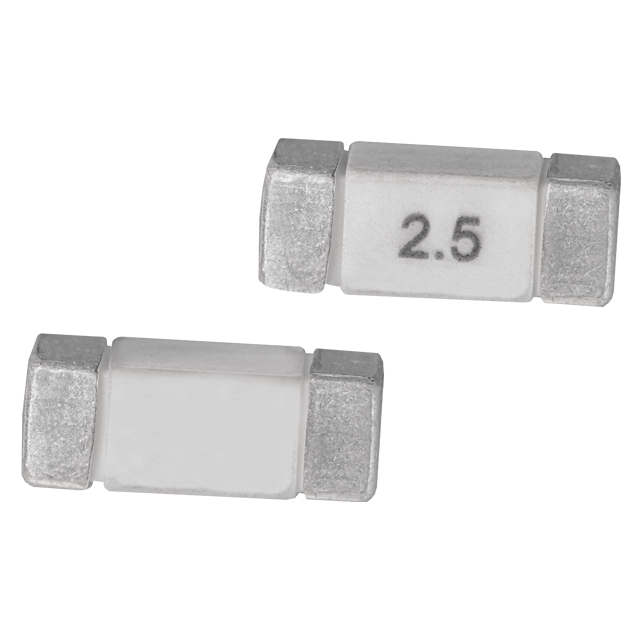

0ACJ Series is AEC-Q200 Compliant surface mount fast acting fuse. These fuses have 600VDC/400VDC and 350VAC high voltage rating, 1A through 7.5A current rating, -40ºC to +125ºC operating temperature and special physical size 5x5x13.2mm.
Features
  • Surface Mount
  • Fast Acting
  • High Voltage Ratings
  • RoHS Compliant
Specifications
  • Fuse Type: Brick Fuse
  • Current (A): 1 ~ 7.5
  • Voltage (VDC): 400 ~ 600
  • Voltage (VAC): 350
  • Mounting Type: Surface Mount
  • Response Time: Fast Blow
  • AEC-Q200 Compliant: Yes
  • RoHS Compliant: Yes
