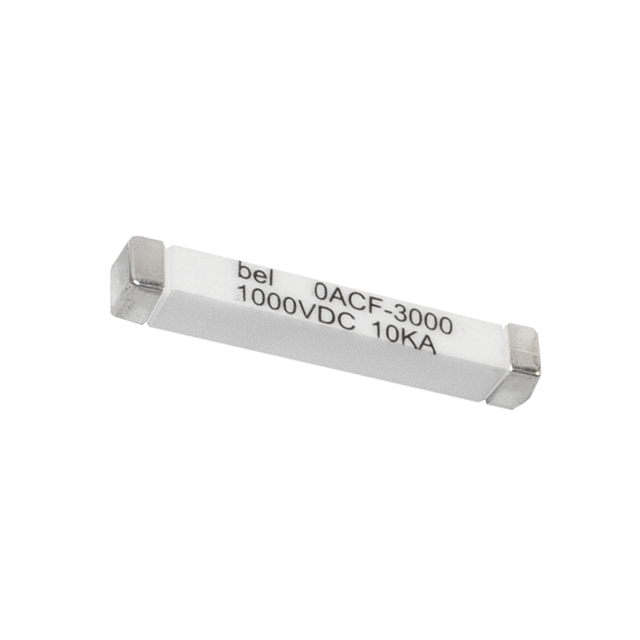

0ACF-3000-TE Fuses
High Voltage Fast Acting Brick Fuse, 5 x 5 x 32 mm, Silver Plating, 3 A, Surface Mount, 1000 VDC, AEC-Q200 Compliant
Stock Check
Country - USA
Features & Specifications
| Fuse Type | Brick Fuse |
| Current (A) | 3 |
| Plating | Silver |
| Voltage (VDC) | 1000 |
| RoHS Compliant | Yes |
| AEC-Q200 Compliant | Yes |
| Interrupting Rating DC (A) | 1000 |
| Brand | Bel |
| Mounting Type | Surface Mount |
| Response Time | Fast Blow |
| Packaging | Tape and Reel (1000 pcs.) |
| Length (mm) | 5 |
| Width (mm) | 32 |
| Height (mm) | 5 |
