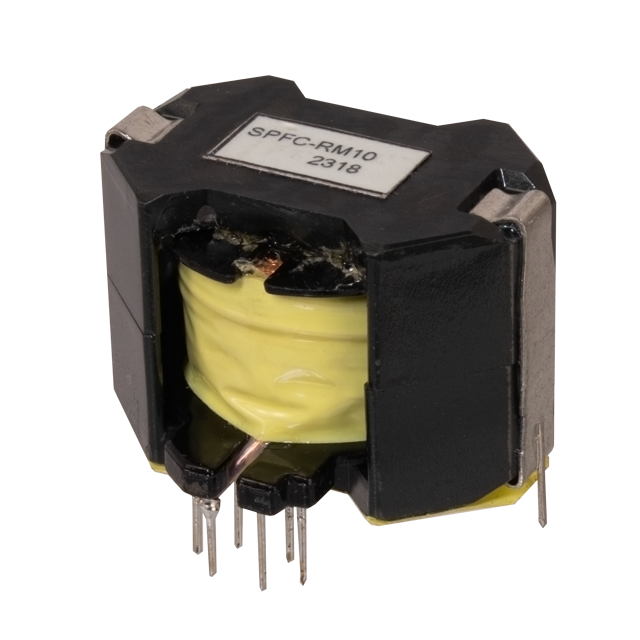

SPFC-RM10-200
Through Hole Inductors
Shielded High Frequency PFC Choke, 250 uH, 1.1 A, 0.15 Ω DCR, RM10/12/14, 200 W, 195 ~ 265 VAC
Stock Check
Country - USA
Features & Specifications
| Inductance (µH) | 250 |
| Current (A) | 1.1 |
| DCR (Ohm) | 0.15 |
| Current Saturation - Isat (A) | 5.6 |
| Operating Temperature (ºC) | -40 ~ +125 |
| Length (mm) | 29 |
| Width (mm) | 31 |
| Voltage Input (VAC) | 195~265 |
| Mounting Type | Through Hole Mount |
| Height (mm) | 20 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Shielding | Yes |
| Brand | Signal Transformer |
| Platform | RM10/12/14 |
| Power (W) | 200 |
| Lead Thickness (mm) | 0.6 |
| Lead Length (mm) | 3.5 |
