SOSTC-40-0051

Through Hole Inductors

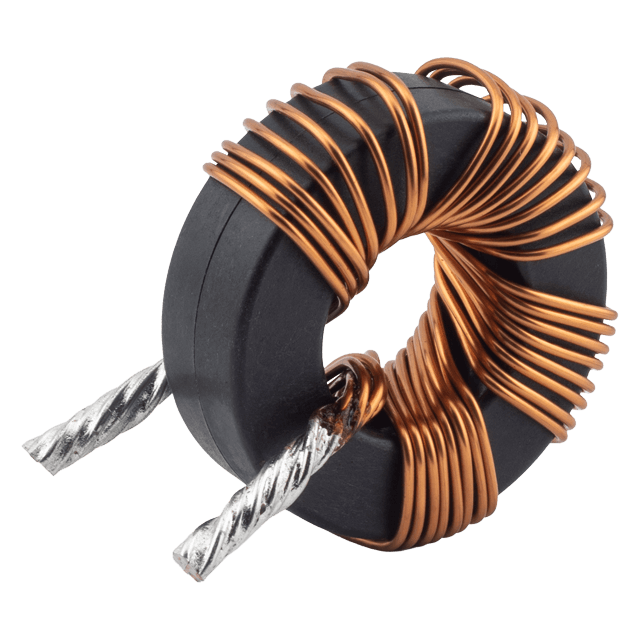

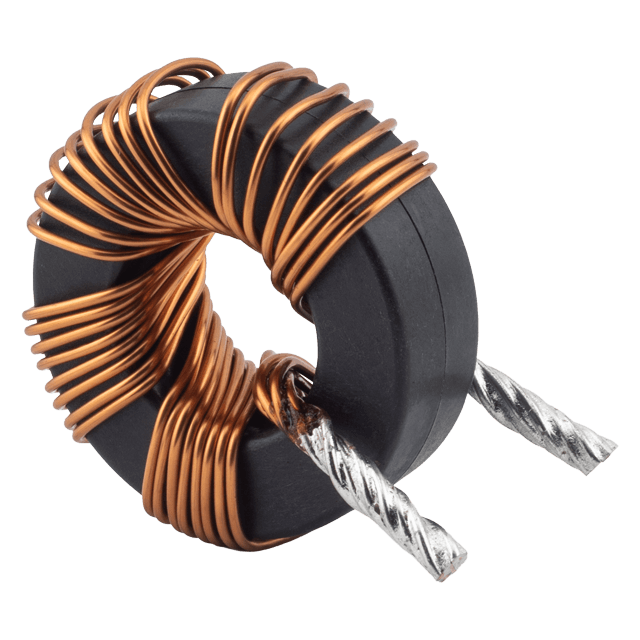

Shielded Mount Toroidal Output Smoothing Choke, 50 µH, 40 A, 0.005 Ω DCR
Request Quote

Stock Check

Explore Custom Magnetic Solutions Discover how we tailor transformers, chokes, coils, and inductors to meet your application needs—electrically, mechanically, and with full engineering support.
Request Customization

Features & Specifications

Inductance (µH) 50
Current (A) 40
DCR (Ohm) 0.005
Operating Temperature (ºC) -40 ~ +130
Length (mm) 57
Width (mm) 57
Mounting Type Through Hole Mount
Height (mm) 35
Packaging Tray
RoHS Compliant Yes
Shielding Yes
Brand Signal Transformer
Lead Thickness (mm) 1.1x8
Lead Length (mm) 25
