SC53-330
SMD Inductors

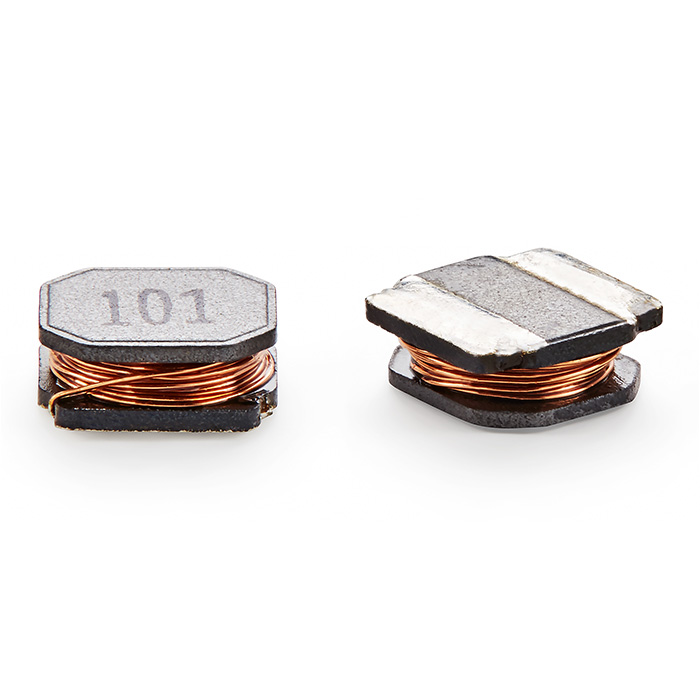

Low Current Unshielded SMD Power Inductor, 33 uH, 1.02 A, 0.3 Ω DCR, Test Frequency 2520 KHz
Stock Check
Country - USA
Features & Specifications
| Inductance (uH) | 33 |
| Current (A) | 1.02 |
| DCR (Ohm) | 0.3 |
| Current Saturation - Isat (A) | 0.76 |
| Operating Temperature (ºC) | -40 ~ +125 |
| Length (mm) | 5.5 |
| Test Frequency (KHz) | 2520 |
| Width (mm) | 6.1 |
| Mounting Type | Surface Mount |
| Height (mm) | 3.3 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Shielding | No |
| Brand | Signal Transformer |
| AEC-Q200 Compliant | No |
