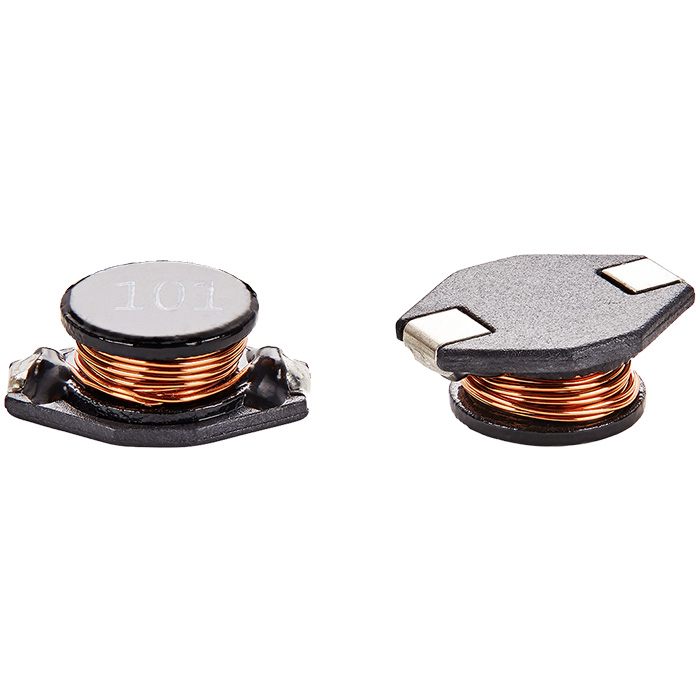

SC3316F-471 SMD Inductors
Low Current Unshielded SMD Power Inductor, 470 uH, 0.6 A, 1.27 Ω DCR, Test Frequency 100 KHz
Stock Check
Country - USA
Features & Specifications
| Inductance (uH) | 470 |
| Current (A) | 0.6 |
| Current Saturation - Isat (A) | 0.5 |
| DCR (Ohm) | 1.27 |
| Test Frequency (KHz) | 100 |
| Operating Temperature (ºC) | -40 ~ +125 |
| Mounting Type | Surface Mount |
| Length (mm) | 13.45 |
| Width (mm) | 9.9 |
| Height (mm) | 5.21 |
| Shielding | No |
| Packaging | Tape and Reel |
| AEC-Q200 Compliant | No |
| RoHS Compliant | Yes |
| Brand | Signal Transformer |
