New Product

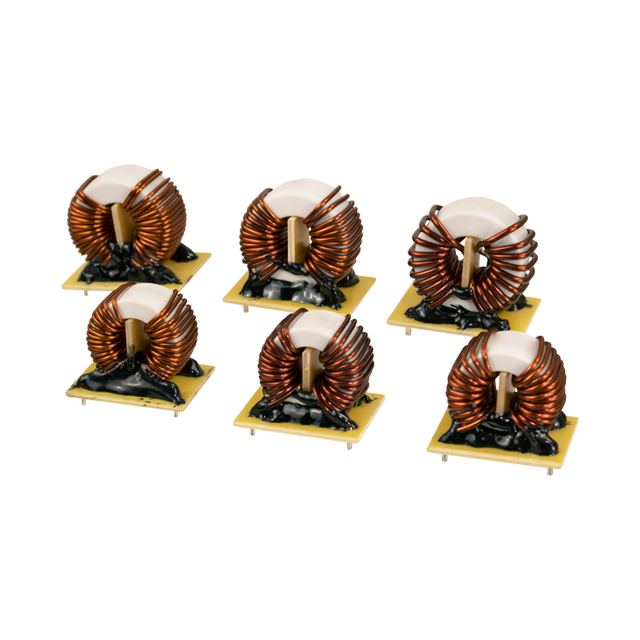

SNCMC Series

Signal is introducing the SNCMC series. It is our first Common Mode Choke with a Nanocrystalline core. The superior material properties of nanocrystalline enable common mode chokes with high inductance/impedance with a small number of turns, resulting in reduced copper losses, low winding capacitance and excellent attenuation performance.
Features
  • Small size and light weight
  • High efficiency, low power loss
  • Suited for high current application
  • Operating temperature -25°C to 130°C
  • Dielectric strength 3.0 KV min
  • Vertical mounting
Specifications
  • Inductance (mH): 3.3 ~ 26.8
  • Current (A): 8 ~ 21
  • Dielectric Strength (Vrms): 1500
  • Operating Temperature (ºC): -25 ~ +130
  • Mounting Type: Through Hole Mount
  • AEC-Q200 Compliant: No
  • RoHS Compliant: Yes
