Active

LPTC-V-42.5-2-200

Common Mode Chokes

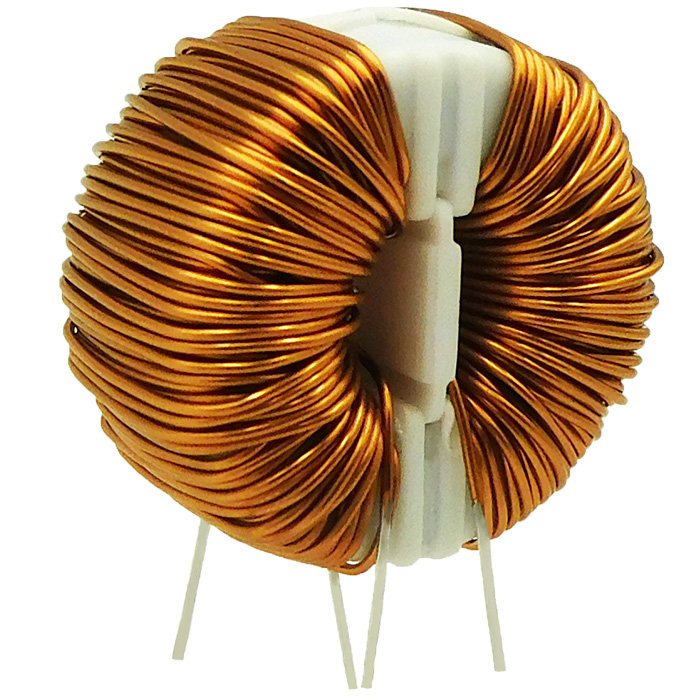

Toroidal Common Mode Choke, 42.5 mH Inductance@1kHz, 2 A, 200 mΩ DCR, 3750 Vrms, -55°C ~ +125°C, Through Hole Mount
Request Quote

Stock Check

Explore Custom Magnetic Solutions Discover how we tailor transformers, chokes, coils, and inductors to meet your application needs—electrically, mechanically, and with full engineering support.
Request Customization

Features & Specifications

Inductance (mH) 42.5
Current (A) 2
DCR (Ohm) 0.2
Operating Temperature (ºC) -55 ~ +125
Length (mm) 32
Width (mm) 21
Mounting Type Through Hole Mount
Height (mm) 31
Dielectric Strength (Vrms) 3750
Packaging Tray
RoHS Compliant Yes
Brand Signal Transformer
AEC-Q200 Compliant No
Lead Thickness (mm) 0.6
Lead Length (mm) 12.7
