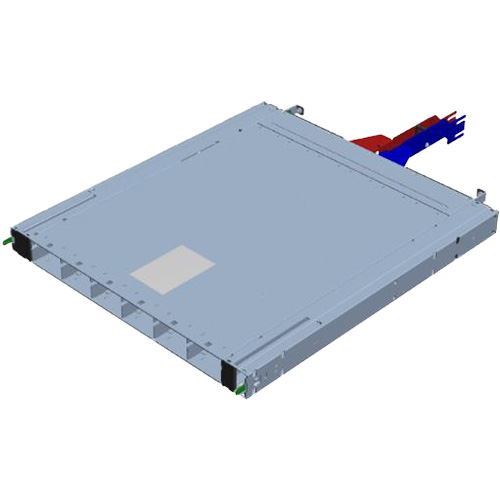

AC-DC Power Shelf | Power 24060W | 3-phase | 200 – 240 / 346 – 415 VAC Line to Line input with Neutral line Single output blade for +54.5 VDC output | Offset Long Bus Bar

Email Form

DESCRIPTION

AC-DC Power Shelf | Power 24060W | 3-phase | 200 – 240 / 346 – 415 VAC Line to Line input with Neutral line Single output blade for +54.5 VDC output | Offset Long Bus Bar

DOCUMENTS

SUPPORT

Email Form

REQUEST QUOTE





Power (W) 24060
Voltage Input (VAC) 200-240/346-415
Output Voltage (VDC) 54.5
Output Current (A) 440
Operating Temperature (°C) 0 to 55
Dimensions LxWxH (mm) 602 x 534.5 x 46.5
Isolation Isolated
Configuration (max no. of PSUs) 6+0
No. of Output Busbars 1 (Offset Long)
NAC Included NO
