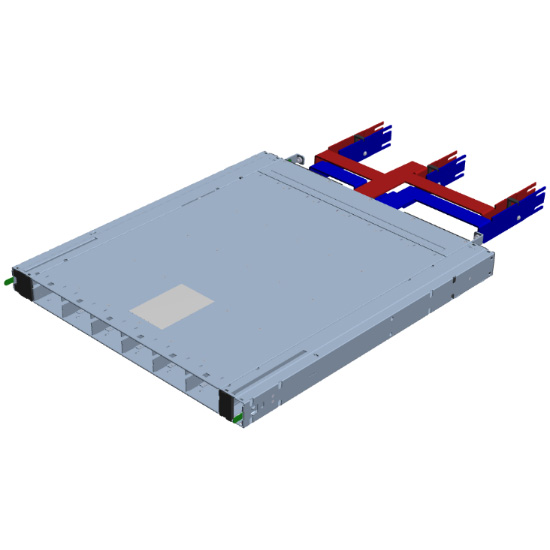

AC-DC Power Shelf | Power 24060W | 3-phase | 200-277 / 346-480 VAC Line to Line input with Neutral line Triple output blade for +54.5 VDC output | Straight Long Bus Bar

Email Form

AC-DC Power Shelf | Power 24060W | 3-phase | 200-277 / 346-480 VAC Line to Line input with Neutral line Triple output blade for +54.5 VDC output | Straight Long Bus Bar

Email Form

Power (W) 24060
Voltage Input (VAC) 200-277/346-480
Output Voltage (VDC) 54.5
Output Current (A) 440
Operating Temperature (ºC) 0 to 55
Dimensions LxWxH (mm) 602 x 534.5 x 46.5
Isolation Isolated
Configuration (max no. of PSUs) 6+0
No. of Output Busbars 3 (Straight Long)
NAC Included NO
