SC3316F-471
SC3316F-471

check_circle

SC3316F-471

Share

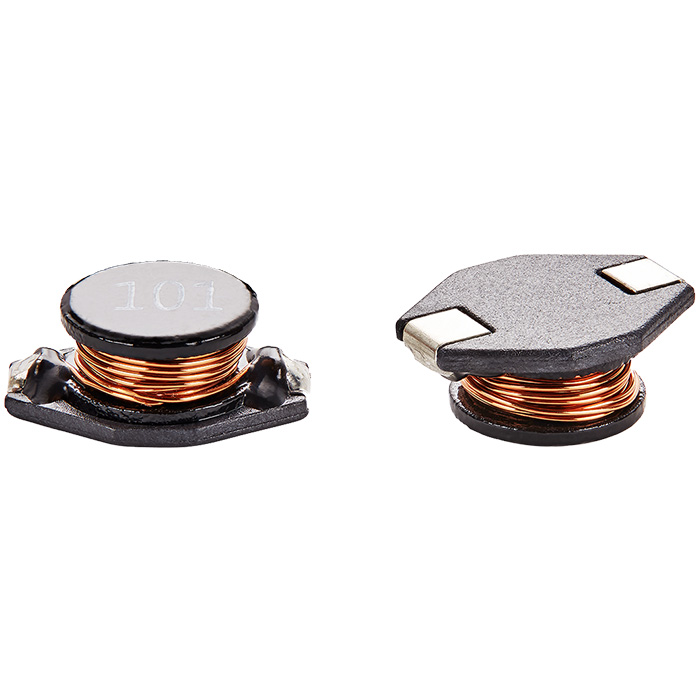

Low Current Unshielded SMD Power Inductor | Inductance 470uH | Test Frequency 100KHz | DC Resistance 1.27Ω | Saturation Current 0.5A | Temperature Current 0.6A | Max Height 5.21mm

Email Form

DESCRIPTION

Low Current Unshielded SMD Power Inductor | Inductance 470uH | Test Frequency 100KHz | DC Resistance 1.27Ω | Saturation Current 0.5A | Temperature Current 0.6A | Max Height 5.21mm

SUPPORT

Email Form

REQUEST QUOTE

DOCUMENTS

Saturation (A) 0.5
Temperature Rise (A) 0.6
Max Height (mm) 5.21
DCR (Ohm) 1.27
Low EMI NO
Dimensions (mm) Max 13.45*9.9
Inductance (uH) 470
Test Frequency 100KHz
Shielding Unshielded
Current (A) Low
Low Profile NO
