Active

HCTC-30-2.3

Common Mode Chokes

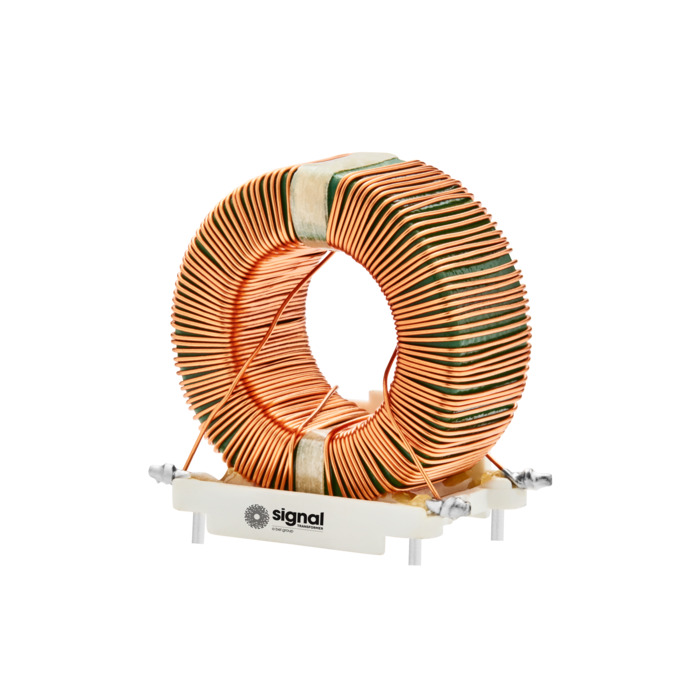

High Current Toroidal Choke, 30 mH, 2.3 A, 330 mΩ DCR, 1500 Vrms, -55°C ~ +105°C, Through Hole Mount
Request Quote

Stock Check

Explore Custom Magnetic Solutions Discover how we tailor transformers, chokes, coils, and inductors to meet your application needs—electrically, mechanically, and with full engineering support.
Request Customization

Features & Specifications

Inductance (mH) 30
Current (A) 2.3
DCR (Ohm) 0.33
Operating Temperature (ºC) -55 ~ +105
Length (mm) 34.29
Width (mm) 20.70
Mounting Type Through Hole Mount
Height (mm) 36.83
Dielectric Strength (Vrms) 1500
Packaging Tray
RoHS Compliant Yes
Brand Signal Transformer
AEC-Q200 Compliant No
Inductance Leakage (mH) 0.136
Lead Thickness (mm) 1.27
Lead Length (mm) 3.81
