MRT Series

Share

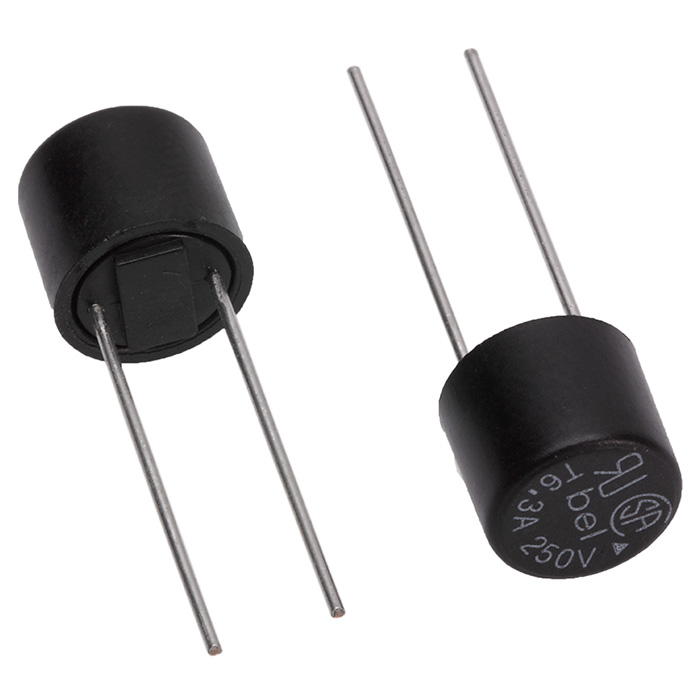

MRT Series is AEC-Q Compliant radial lead, subminiature, time lag fuse with high voltage rating. 250V AC voltage rating, 80mA to 6.3A current rating, -55ºC to +125ºC operating temperature. Approved and complied with IEC 60127-3, standard sheet 4.

Specifications

  • AEC-Q Compliant
  • Wave Solder Process - 260ºC, 10 Sec., Max.
  • Multiple Safety Agency Approvals
  • Operating Temperature: -55ºC to +125ºC
  • Mil-Std 202G Environmental Compliant

Features

  • Compact, round or rectangular body with 5mm Pin Spacing
  • 94V-0 Thermoplastic Housing
  • RoHS6 Compliant
  • Pb-Free
  • Halogen-Free
  • Bulk and Ammo Pack Available

Email Form

MRT Series is AEC-Q Compliant radial lead, subminiature, time lag fuse with high voltage rating. 250V AC voltage rating, 80mA to 6.3A current rating, -55ºC to +125ºC operating temperature. Approved and complied with IEC 60127-3, standard sheet 4.

Specifications

  • AEC-Q Compliant
  • Wave Solder Process - 260ºC, 10 Sec., Max.
  • Multiple Safety Agency Approvals
  • Operating Temperature: -55ºC to +125ºC
  • Mil-Std 202G Environmental Compliant

Features

  • Compact, round or rectangular body with 5mm Pin Spacing
  • 94V-0 Thermoplastic Housing
  • RoHS6 Compliant
  • Pb-Free
  • Halogen-Free
  • Bulk and Ammo Pack Available
