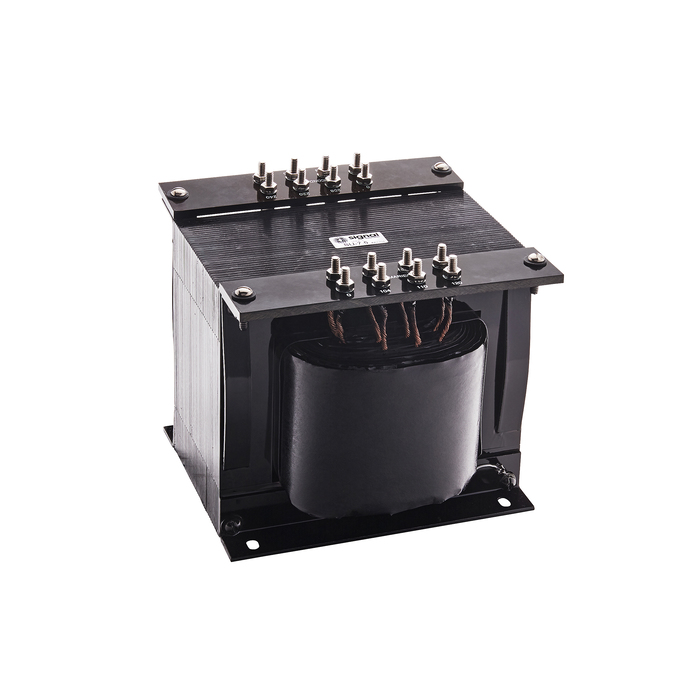

SU-10 Single Phase Transformers
Step Up / Down Power Isolation Transformer, 10000 VA Power, 416 V / 428 V / 440 V / 448 V / 460 V / 480 V Output Series, Chassis Mount
Stock Check
Country - USA
Features & Specifications
| Power (VA) | 10000 |
| RoHS Compliant | Yes |
| Voltage - Primary (V) | 104/110/120/208/214/220/224/230/240 |
| Brand | Signal Transformer |
| Frequency (Hz) | 50 ~ 500 |
| Dielectric Strength (Vrms) | 2500 |
| Mounting Type | Chassis Mount |
| Insulation Class | Class B, 130ºC |
| Weight lbs (kg) | 150 (68.04) |
| Dimensions L x W x H (in) | 9 x 13 x 8 |
| Dimensions L x W x H (mm) | 228.6 x 330.2 x 203.2 |
| Voltage - Secondary Series | 416V/428V/440V/448V/460V/480V |
| Safety Standards | UL 5085 |
| Safety Approvals | CSA, UL |
| Voltage - Secondary Parallel | 208V/220V/240V |
