STP-0100 Series
STP-0100 Series

STP-0100 Series

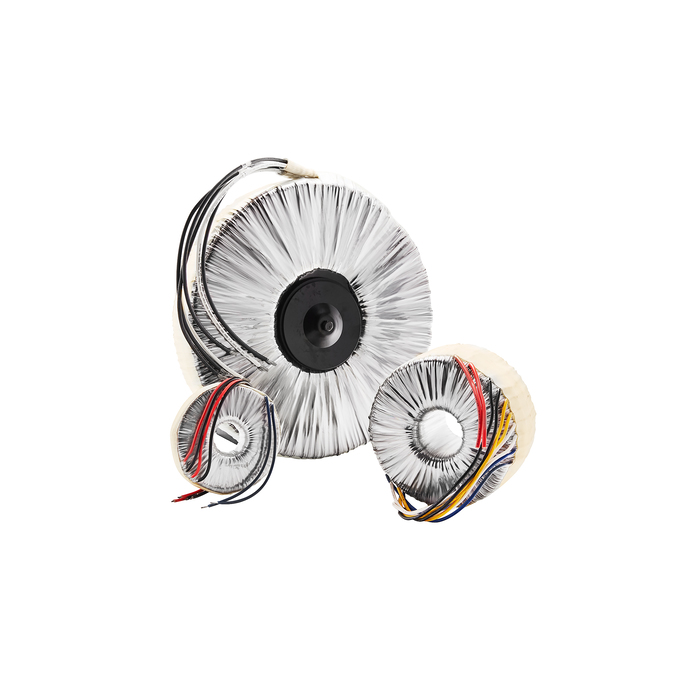

Signal's STP-0100 Series transformers are 100VA single phase transformers in a chassis mount package. They are designed to convert 115 ~ 230V input to 230V in series or 115V parallel.
Features
  • Low Profile
  • Minimum Core Losses
  • Reduced EMI / Low dB
  • UL Recognized to UL 506 / 5085-2
  • Easily Modified
Specifications
  • Power (VA): 100
  • Voltage - Primary (V): 115 ~ 230
  • Insulation Class: 130ºC, Class B
  • Dielectric Strength (Vrms): 4000
  • Mounting Type: Chassis Mount
  • Weight lbs (kg): 2.86 (1.3)
  • Width in (mm): 4.2 (106.68)
  • Height in (mm): 1.4 (35.56)
  • Safety Standards: UL 5085
  • Safety Approvals: UL
  • RoHS Compliant: Yes
