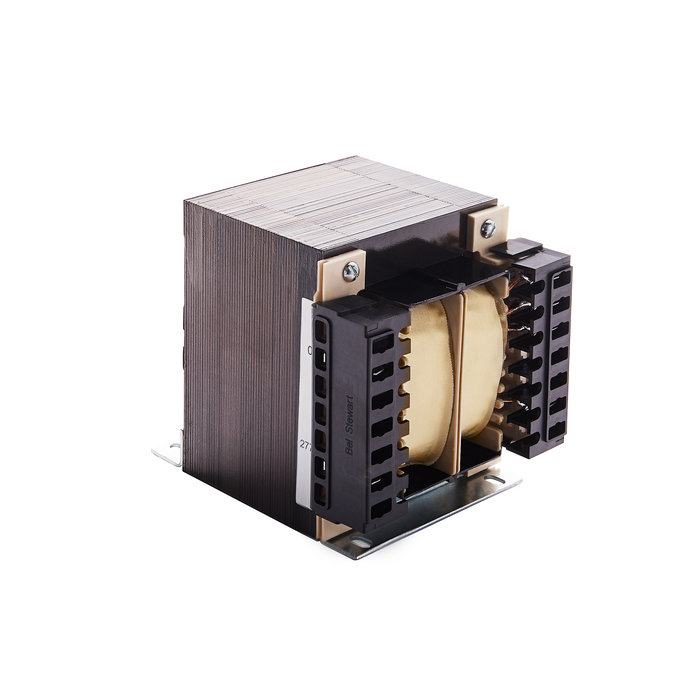

SLT-600 Single Phase Transformers
Safety Isolation Transformer, 600 VA Power, 277 V Input, 115 V / 120 V / 125 V Output, Chassis Mount
Stock Check
Country - USA
Features & Specifications
| Power (VA) | 600 |
| RoHS Compliant | Yes |
| Voltage - Primary (V) | 277 |
| Brand | Signal Transformer |
| Voltage - Secondary (V) | 115/120/125 |
| Frequency (Hz) | 60 |
| Dielectric Strength (Vrms) | 4000 |
| Mounting Type | Chassis Mount |
| Insulation Class | Class F, 155ºC |
| Weight lbs (kg) | 14.3 (6.49) |
| Dimensions L x W x H (in) | 4.46 x 5.08 x 4.5 |
| Dimensions L x W x H (mm) | 113.3 x 129 x 114.3 |
| Safety Standards | UL 5085 |
| Safety Approvals | UL |
