DMPC-Y Series
DMPC-Y Series

DMPC-Y Series

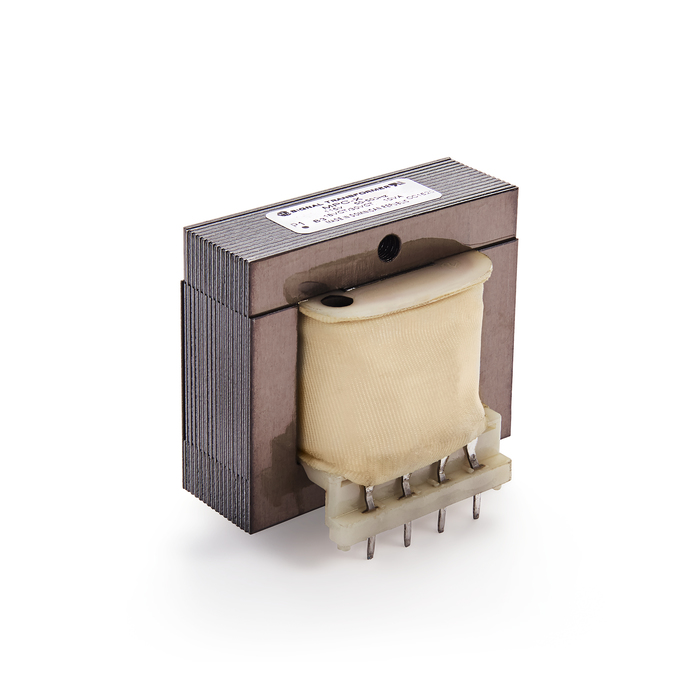

Signal's DMPC-X Series transformers are 24VA single phase transformers in a through hole mount package. They are designed to convert 115 ~ 230V input to 5VDC, with ±12VDC, 5VDC, with ±15VDC output.
Features
  • Board Space Saver
  • Triple Output
  • UL Recognized to UL 506 / UL5085-2
  • CSA certified to C22.2 #66.1
  • Easily Modified
Specifications
  • Power (VA): 24
  • Voltage - Primary (V): 115 ~ 230
  • Insulation Class: 130ºC, Class B
  • Dielectric Strength (Vrms): 1500
  • Mounting Type: Through Hole Mount
  • Weight lbs (kg): 0.75 (0.34)
  • Dimensions L x W x H (in): 1.62 x 2.25 x 1.37
  • Dimensions L x W x H (mm): 41.1 x 57.2 x 34.8
  • Safety Standards: UL 5085
  • Safety Approvals: CSA, UL
  • RoHS Compliant: Yes
