B-2828 Series

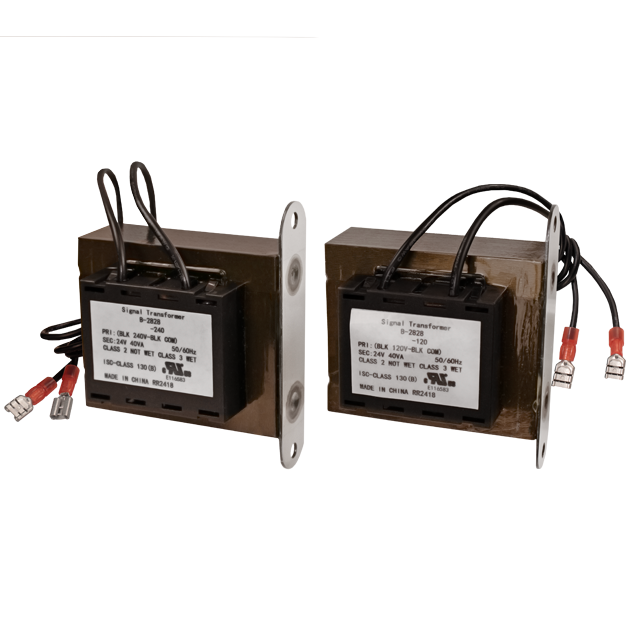

Signal's B-2828 Series transformers are 40VA single phase transformers in a chassis mount package. They are designed to convert 120 ~ 575V input to 24V output
Features
  • UL/CUL Class 2 recognized
  • Inherently limited
  • No secondary load fusing required
  • Vertical chassis mount
  • Alternate mounting and termination options available
Specifications
  • Power (VA): 40
  • Voltage - Primary (V): 120 ~ 575
  • Insulation Class: 130ºC, Class B
  • Dielectric Strength (Vrms): 2500
  • Mounting Type: Chassis Mount
  • Weight lbs (kg): 1.52 (0.96)
  • Dimensions L x W x H (in): 3.25 x 2.63 x 2
  • Dimensions L x W x H (mm): 82.55 x 66.8 x 50.8
  • Safety Standards: UL 5085
  • Safety Approvals: UL
  • RoHS Compliant: Yes
