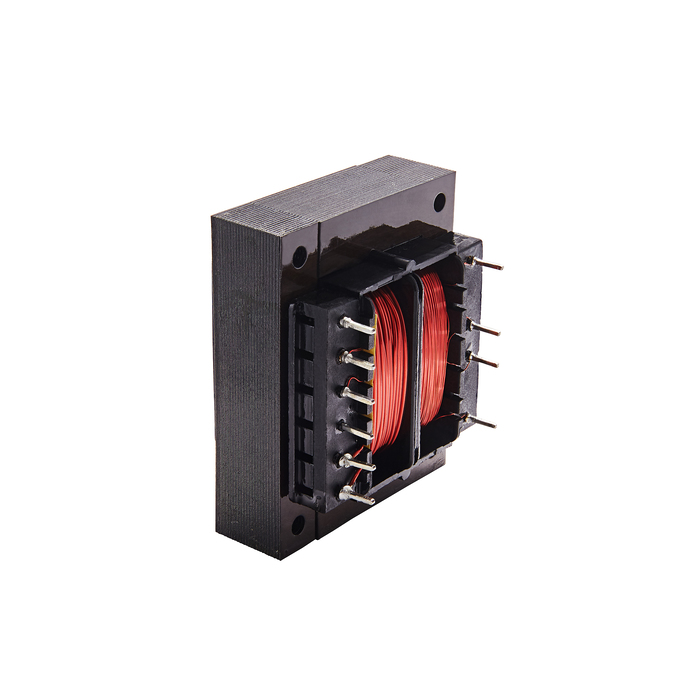

14A-30-515 Single Phase Transformers

International One-4-All Triple Output Transformer, 30 VA Power, 115 V / 230 V Input, 5 VDC / with ±15 VDC Output, Through Hole Mount

Stock Check

Request Quote
Explore Custom Magnetic Solutions Discover how we tailor transformers, chokes, coils, and inductors to meet your application needs—electrically, mechanically, and with full engineering support.
Request Customization

Features & Specifications

Power (VA) 30
Voltage - Primary (V) 115/230
Voltage - Secondary (V) 5VDC/with ±15VDC
Frequency (Hz) 50/60
Insulation Class Class F, 155ºC
Dielectric Strength (Vrms) 4000
Mounting Type Through Hole Mount
Weight lbs (kg) 1.15 (0.52)
Dimensions L x W x H (in) 2.62 x 2.18 x 1.56
Dimensions L x W x H (mm) 66.5 x 55.4 x 39.6
Safety Standards 62368, UL 5085
Safety Approvals CSA, UL, VDE
RoHS Compliant Yes
Brand Signal Transformer
