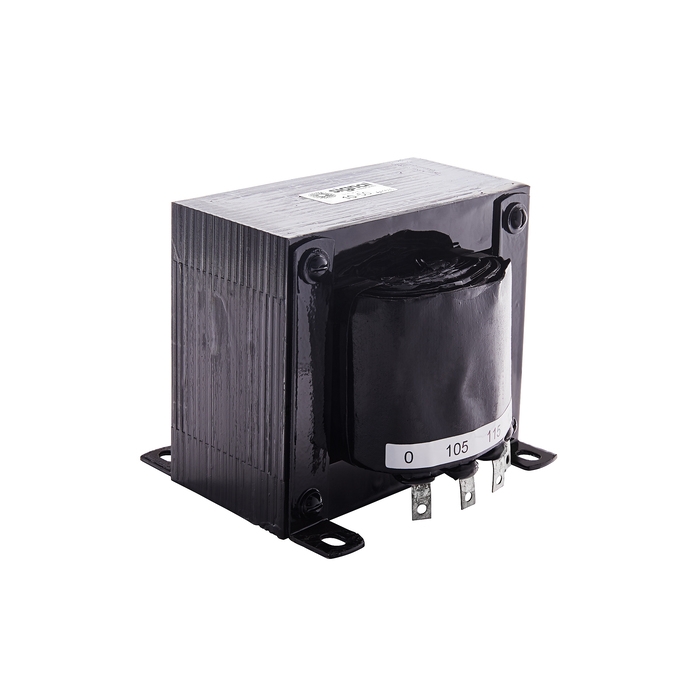

10-50 Single Phase Transformers
Rectifier Power Transformer, 500 VA Power, 105 V / 115 V / 125 V Input, 5 VCT Output Parallel, 10 VCT Output Series, Chassis Mount
Stock Check
Country - USA
Features & Specifications
| Power (VA) | 500 |
| RoHS Compliant | Yes |
| Voltage - Primary (V) | 105/115/125 |
| Brand | Signal Transformer |
| Frequency (Hz) | 50/60 |
| Dielectric Strength (Vrms) | 1500 |
| Mounting Type | Chassis Mount |
| Insulation Class | Class B, 130ºC |
| Weight lbs (kg) | 17 (7.71) |
| Dimensions L x W x H (in) | 5.35 x 5.5 x 4.37 |
| Dimensions L x W x H (mm) | 135.9 x 139.7 x 111 |
| Voltage - Secondary Series | 10VCT |
| Safety Approvals | CSA, UL |
| Voltage - Secondary Parallel | 5VCT |
