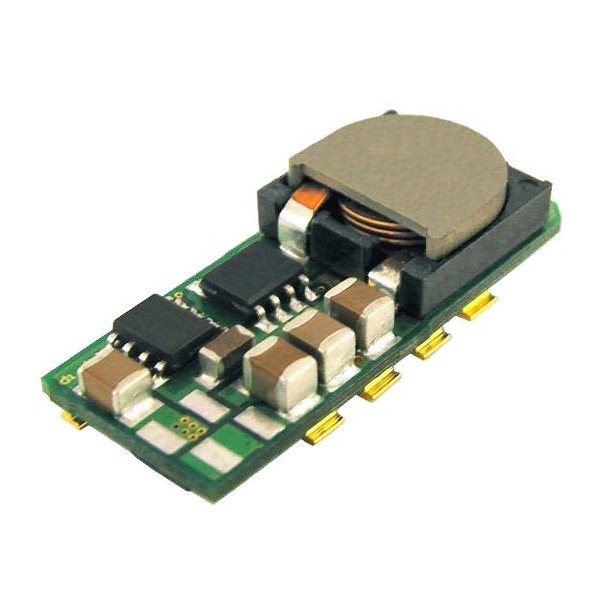

YS12S10-DG DC-DC Converters
Non Isolated POL | Power 55 W | Output 0.7525 ~ 5.5 VDC, 10 A | Input 9.6 ~ 14 VDC
Stock Check
Country - USA
Features & Specifications
| Power (W) | 55 |
| Input Voltage Range (VDC) | 9.6 ~ 14 |
| Output Voltage (VDC) | 0.7525 ~ 5.5 |
| Output Current (A) | 10 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +85 |
| Dimensions L x W x H (mm) | 33.02 x 13.46 x 7.87 |
| Dimensions L x W x H (in) | 1.3 x 0.53 x 0.31 |
| Mounting Type | Surface Mount |
| Market | ITE |
| Isolated | No |
| Active Logic | Active Low |
| Safety Standards | 62368 |
| Safety Approvals | CB, Nemko |
| RoHS Compliant | Yes |
| Brand | Bel |
