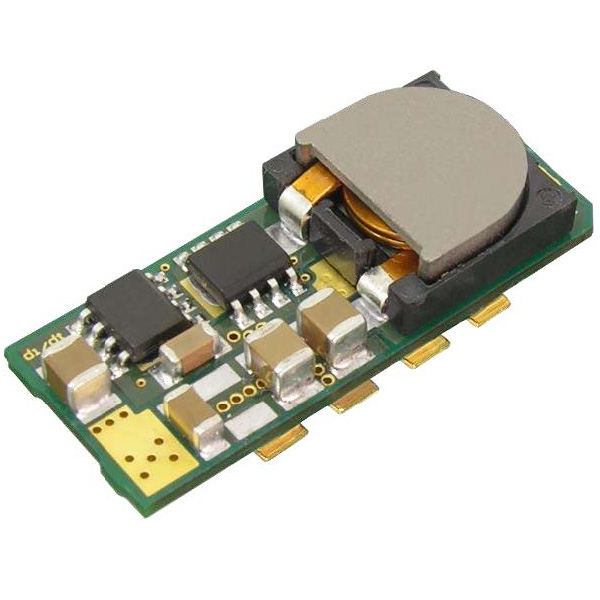

YS05S10 Series

Bel Power Solutions point-of-load converters are recommended for use with regulated bus converters in an Intermediate Bus Architecture (IBA). The YS05S10 nonisolated DC-DC converter delivers up to 10 A of output current in an industry-standard surface-mount package. Operating from a 3.0 - 5.5 V input, the YS05S10 converter is an ideal choice for Intermediate Bus Architectures where Point-of-Load (POL) power delivery is generally a requirement. It provides an extremely tightly-regulated programmable output voltage from 0.7525 V to 3.63 V.
Features
  • Surface-mount package
  • Industry-standard footprint and pinout
  • Synchronous Buck Converter topology
  • Start-up into pre-biased output
  • No minimum load required
  • Programmable output voltage via external resistor
Specifications
  • Power (W): 36
  • Input Voltage Range (VDC): 3 ~ 5.5
  • Output Voltage (VDC): 0.7525 ~ 3.63
  • Operating Temperature Range (ºC): -40 ~ +85
  • Isolation (VDC): 0
  • Isolated: No
  • Safety Standards: 62368
  • Safety Approvals: CB, Nemko
  • RoHS Compliant: Yes
