YEV09T20 Series
YEV09T20 Series

YEV09T20 Series

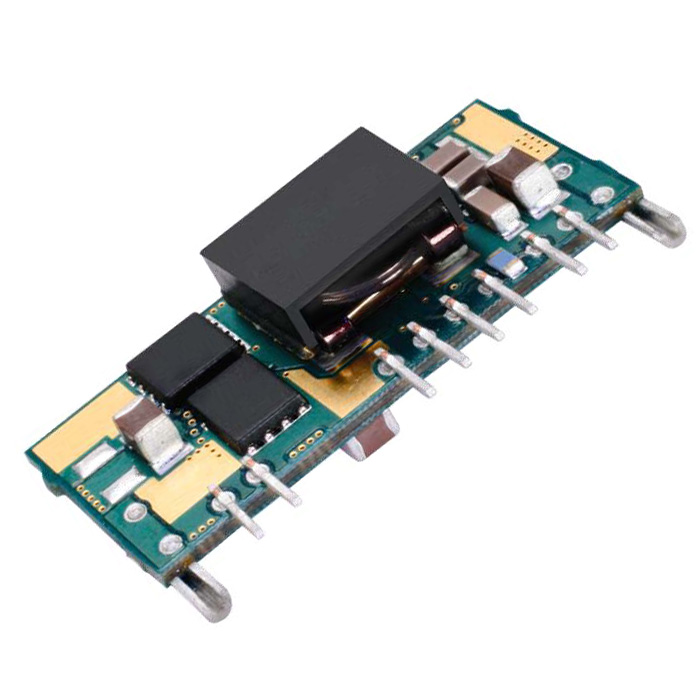

Bel Power Solutions point-of-load converters are recommended for use with regulated bus converters in an Intermediate Bus Architecture (IBA). The YEV09T20-0 non-isolated DC-DC point of load (POL) converter delivers up to 20A of output current in an industry-standard single-in-line (SIP) through-hole package. The YEV09T20-0 POL converter is an ideal choice for Intermediate Bus Architectures where point of load conversion is a requirement. Operating from a 4.5-13.8V input the POL converter provides an extremely tightly regulated programmable output voltage of 0.59V to 5.1V.
Features
  • High efficiency synchronous buck topology
  • Low noise fixed frequency operation
  • Overcurrent, and output overvoltage protections with automatic restart
  • Remote differential output voltage sense
  • Power Good signal
  • Start up into prebiased load
Specifications
  • Power (W): 102
  • Input Voltage Range (VDC): 4.5 ~ 13.8
  • Output Voltage (VDC): 0.59 ~ 5.1
  • Operating Temperature Range (ºC): 0 ~ +70
  • Isolation (VDC): 0
  • Isolated: No
  • Safety Standards: 62368
  • Safety Approvals: CB, Nemko
  • RoHS Compliant: Yes
