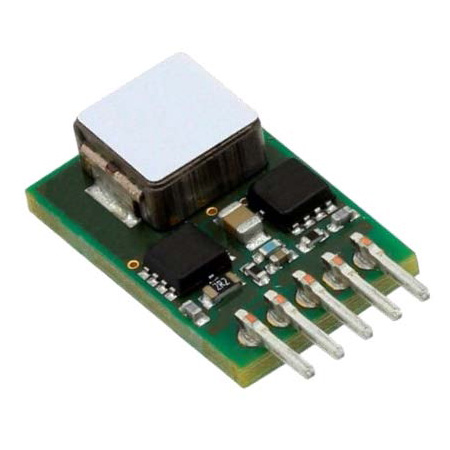

YEV09T03-0G DC-DC Converters
Non Isolated POL | Power 15W | Output 0.59-5.1VDC, 3A | Input 4.5-13.8VDC
Stock Check
Country - USA
Features & Specifications
| Power (W) | 15 |
| Input Voltage Range (VDC) | 4.5 ~ 13.8 |
| Output Voltage (VDC) | 0.59 ~ 5.1 |
| Output Current (A) | 3 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | 0 ~ +70 |
| Dimensions L x W x H (mm) | 10.41 x 10.16 x 16.51 |
| Dimensions L x W x H (in) | 0.41 x 0.4 x 0.65 |
| Mounting Type | Through Hole Mount |
| Market | ITE |
| Isolated | No |
| Safety Standards | 62368 |
| Safety Approvals | CB, Nemko |
| RoHS Compliant | Yes |
| Brand | Bel |
