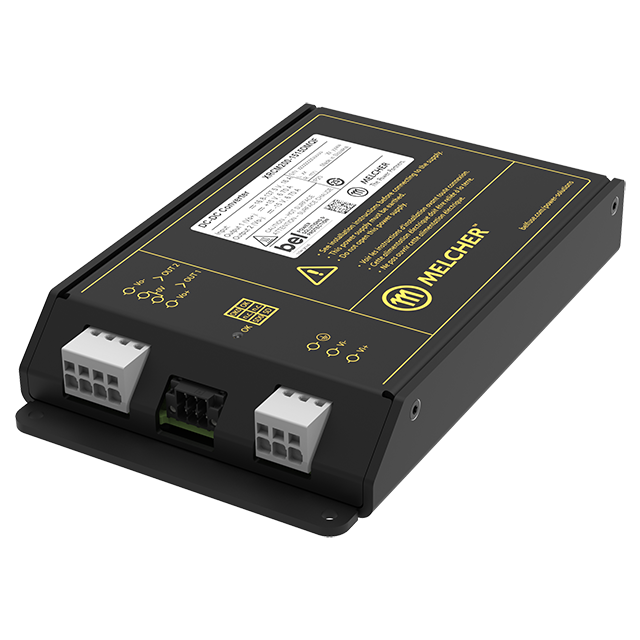

XRCM200-1515DMF DC-DC Converters
DC-DC Dual Output Rugged Melcher™ Cassette | Power 200W | Output 15/-15VDC, 6.7A | Input 16.8-137.5VDC | Out OK, interruption time, shutdown | Fuse Built-in
Stock Check
Country - USA
Features & Specifications
| Power (W) | 200 |
| Input Voltage Range (VDC) | 16.8 ~ 137.5 |
| Output Voltage (VDC) | 15/-15 |
| Output Current (A) | 6.7/6.7 |
| Number of Outputs | 2 |
| Operating Temperature Range (ºC) | -40 ~ +70 |
| Dimensions L x W x H (mm) | 188.6 x 116 x 30.9 |
| Dimensions L x W x H (in) | 7.43 x 4.57 x 1.22 |
| Mounting Type | Chassis Mount |
| Market | ITE, Railway |
| Isolated | Yes |
| Safety Standards | 62368 |
| Safety Approvals | CE, CSA, UL/cUL |
| RoHS Compliant | Yes |
| Brand | Melcher |
