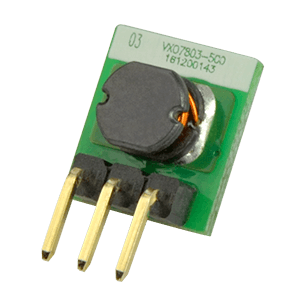

VXO78-500 Series

This product is Not Recommended for New Design (NRND) and availability is limited to remaining stock in distribution. Please contact tech support below with any questions.

View Recommended Replacements

Recommended Replacements

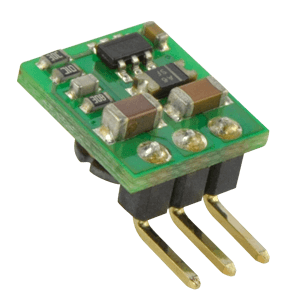

P78A-0500 Series

The compact P78A-0500 non-isolated DC-DC converter series has been designed to offer a high performance alternative to linear regulators. Utilizing switching technology, the series is footprint compatible with TO-220 package LM78XX model regulators. Unlike linear regulators, the P78 dc switching regulator does not require a heat sink, making it ideal for applications where board space is at a premium and energy efficiency is a concern.

View Product

Features

Pin compatible with LM78XX and LM79XX linear regulators
Wide input voltage range
Suited for negative output applications
No-load input current as low as 0.2 mA
Low ripple and noise
Efficiency up to 95%

Specifications

Power (W): 1.65 ~ 7.5
Input Voltage Range (VDC): 4.75 ~ 36
Output Voltage (VDC): 3.3 ~ 15
Standard Footprint: SIP3
Isolation (VDC): 0
Isolated: No
Safety Standards: 62368
Safety Approvals: CSA, UL/cUL
RoHS Compliant: Yes
