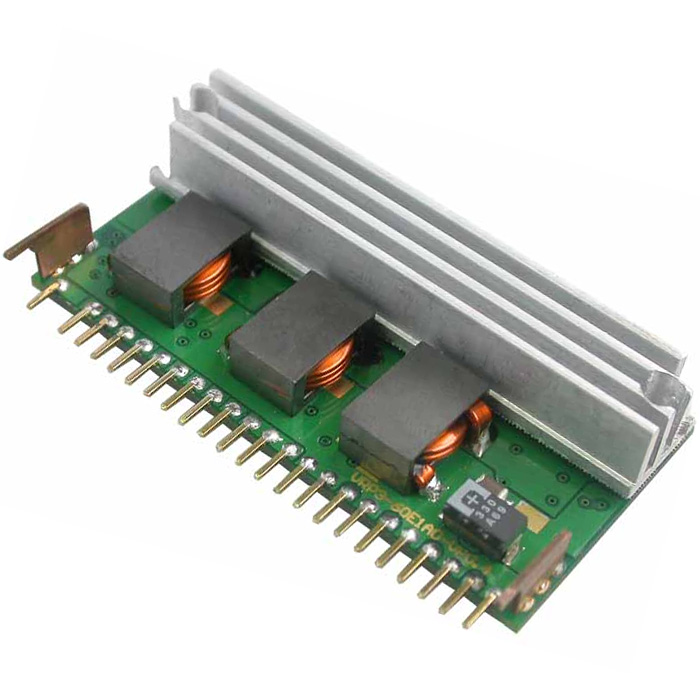

VRP3-60E1A0 DC-DC Converters
Non-Isolated DC-DC Converter | VR11.1 Compliant | Power 300W | Output 0.6-5VDC, 60A | Input 5-13.8VDC | Through Hole Mount | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 300 |
| Input Voltage Range (VDC) | 5 ~ 13.8 |
| Output Voltage (VDC) | 0.6 ~ 5 |
| Output Current (A) | 60 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | 0 ~ +70 |
| Dimensions L x W x H (mm) | 65.53 x 31.75 x 15.44 |
| Dimensions L x W x H (in) | 2.58 x 1.25 x 0.608 |
| Mounting Type | Through Hole Mount |
| Market | ITE |
| Isolated | No |
| Active Logic | Active High |
| Orientation | Vertical |
| RoHS Compliant | Yes |
| Brand | Bel |
