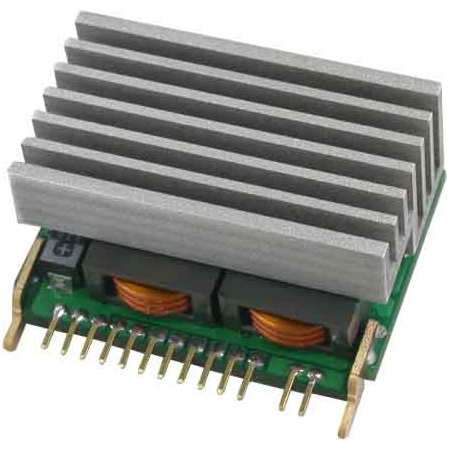

VRP2-50E1A0
DC-DC Converters
Non-Isolated DC-DC Converter | Power 250W | Output 0.6-5VDC, 50A | Input 5-13.8VDC | Active High | Through Hole Mount | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 250 |
| Input Voltage Range (VDC) | 5 ~ 13.8 |
| Output Voltage (VDC) | 0.6 ~ 5 |
| Output Current (A) | 50 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | 0 ~ +70 |
| Dimensions L x W x H (mm) | 36.83 x 27.94 x 18.87 |
| Dimensions L x W x H (in) | 1.45 x 1.1 x 0.743 |
| Mounting Type | Through Hole Mount |
| Market | ITE |
| Isolated | No |
| Active Logic | Active High |
| Orientation | Vertical |
| RoHS Compliant | Yes |
| Brand | Bel |
