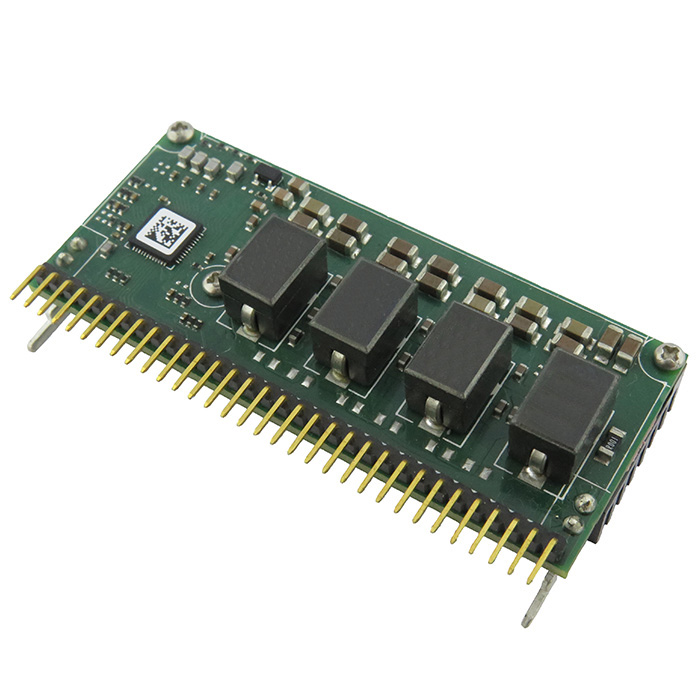

VRNE-60E1A0 DC-DC Converters
Non-Isolated DC-DC Converter | VR12.5 Compliant | Power 138W | Output 0.5-2.3VDC, 60A | Input 7.5-13.5VDC | Through Hole Mount | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 138 |
| Input Voltage Range (VDC) | 7.5 ~ 13.5 |
| Output Voltage (VDC) | 0.5 ~ 2.3 |
| Output Current (A) | 60 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +85 |
| Dimensions L x W x H (mm) | 66.04 x 19.05 x 27.94 |
| Dimensions L x W x H (in) | 2.6 x 0.75 x 1.1 |
| Mounting Type | Through Hole Mount |
| Market | ITE |
| Isolated | No |
| Active Logic | Active High |
| Orientation | Vertical |
| VRM Specification | VRM 12.5 |
| RoHS Compliant | Yes |
| Brand | Bel |
