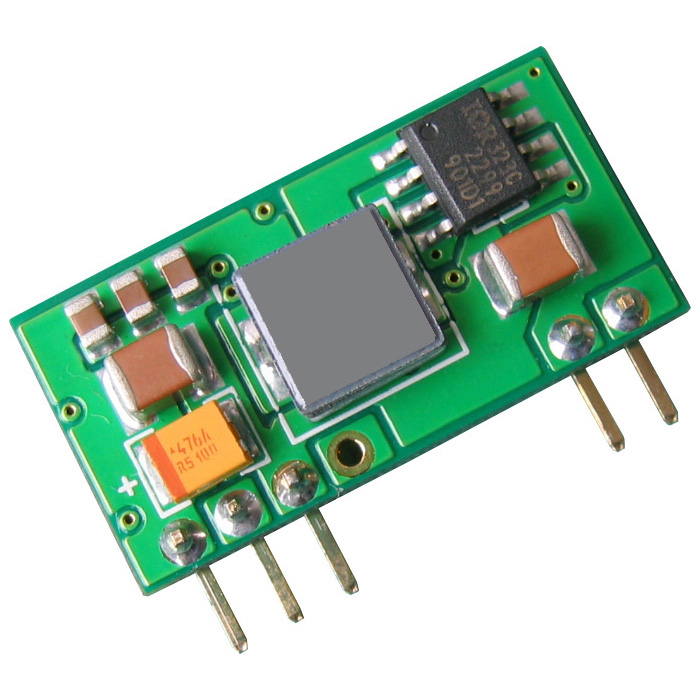

VRBA-06A1A0 DC-DC Converters
Non-Isolated DC-DC Converter | Power 30W | Output 0.75-5VDC, 6A | Input 8.3-14VDC | Active High | Through Hole Mount | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 30 |
| Input Voltage Range (VDC) | 8.3 ~ 14 |
| Output Voltage (VDC) | 0.75 ~ 5 |
| Output Current (A) | 6 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +85 |
| Dimensions L x W x H (mm) | 25.4 x 12.7 x 6.17 |
| Dimensions L x W x H (in) | 1 x 0.5 x 0.243 |
| Mounting Type | Through Hole Mount |
| Market | ITE |
| Isolated | No |
| Active Logic | Active High |
| Orientation | Vertical |
| Sequencing Option | No |
| RoHS Compliant | Yes |
| Brand | Bel |
